The usefull model

Well thought out with regard to high utility value
i
  • Polyester roof with tinted vent windows. The polyester roof is available in many colours at an additonal price; the standard colour ist silver grey.

i
  • Lockable saddle compartment with saddle holder, snaffle holder, mirror, net and 20% more volume.
  • Also available in Western variant.
  • Smooth surfaces in the interior protect the tack during transport.

i
  • Side walls made of high-quality aluminium profiles.
i
  • 13-pin plug with reversing and fog lights.
i
  • Phenolic resin coating floor plate, multibonded waterproofed, 21 mm thick, without rubber floor.
i

High-mass surrounding frame section, hot-dip galvanised

i
  • Elegant, galvanised rear outrigger with integrated lighting.
i
  • Large access door with 3-point locking.
i
  • EquiDrive® Standard longitudinal beam chassis.

i
  • The AERO-dynamic front provides up to 20% more space in the saddle compartment. The lower air resistance saves you fuel.
  • In black metallic or silver as standard; in the complete RAL colour pallete at an additional charge.
i
  • Ramp flap with granulate mat.
i
  • EquiSpace® space concept. Maximum space for the horses thanks to the sophisticated Humbaur EquiSpace® interior concept.
  • The chest and breech bars are divided and padded, adjustable in height and length, and complete with panic unlocking.

i
  • Divided and padded breast and breech bars, with panic release.
i
  • The Humbaur creates a pleasant atmosphere in the twilight for horse and human.
i
  • The exclusive Windschott (deflector) offers draft-free ventailation and continuous air circulation.
i
  • Automatic jockey wheel, centrally mounted.
i

Tyre size suitable for 100km/h.

Innovative technology has never looked better. The AERO-dynamic front provides the Balios© horse trailer with an unmistakeably sleek appearance. Its streamlined shape lowers fuel consumption and even creates 20% more storage space in the saddle compartment. Technologies borrowed from camper van construction methods make the elegant entrance door fit flush into the body. A second door offers additional, easy access to the saddle compartment. Of course, the Balios©AERO also offers your horse an EquiDrive© chassis and our EquiSpace© design concept. This ensures that your horse always arrives safe and relaxed.

The Balios ® AERO horse trailer in detail:

Polyester roof with tinted vent windows
Lockable saddle compartment with saddle holder
Side walls made of high-quality aluminium profiles
13-pin plug with reversing and fog lights
Sturdy floor plate
High-mass surrounding frame section, hot-dip galvanised
Elegant rear support
Large access door with 3-point locking
EquiDrive® Standard longitudinal beam chassis
AERO-dynamic front
Ramp flap with granulate mat
EquiSpace® space concept
Divided and padded breast and breech bars
Interior lighting
Openings for light and air in the interior
Automatic jockey wheel
Tyre size suitable for 100 km/h
The AERO front offers improved aerodynamics and more space in the saddle compartment.
The EquiDrive® chassis ensures the highest stability and thus the best possible safety.
The EquiDrive® PLUS chassis with automatic brake adjustment (Only for models from 2700 kg permissible gross weight).
Designed for convenient transport of two horses.
EquiSpace® - our space concept for maximum room for the horses.
Our lockable partition EquiLock® provides absolute safety for your horses even when the tailgate is open.
Large saddle compartment with extra space for horse and rider equipment.
Large entrance doors with 3-point lock.

Choose a colour

  • All poly parts

Uni-colours

Metallic-colours

Design

Learn more about Balios AERO
Images similar. Colour deviations from lacquering and colouring of parts of all kinds are possible and do not constitute a defect.

Technical data

Balios AERO

Trailer Balios AERO in detail

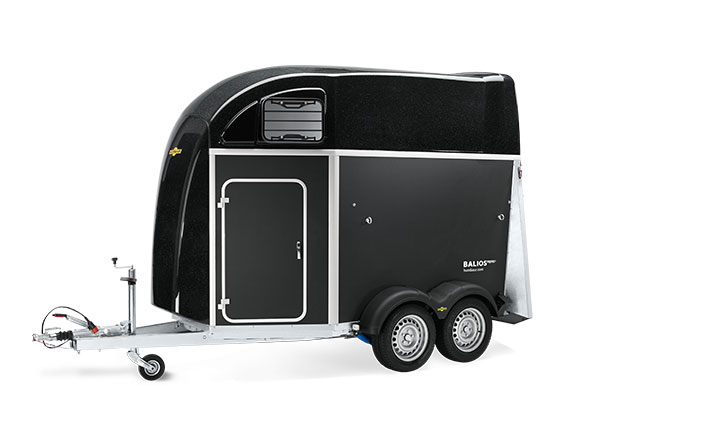

Balios AERO silhouette sideview
Inner height 2.364 mmTotal height 2.855 mm
Inner length 3.447 mmTotal length 4.592 mm

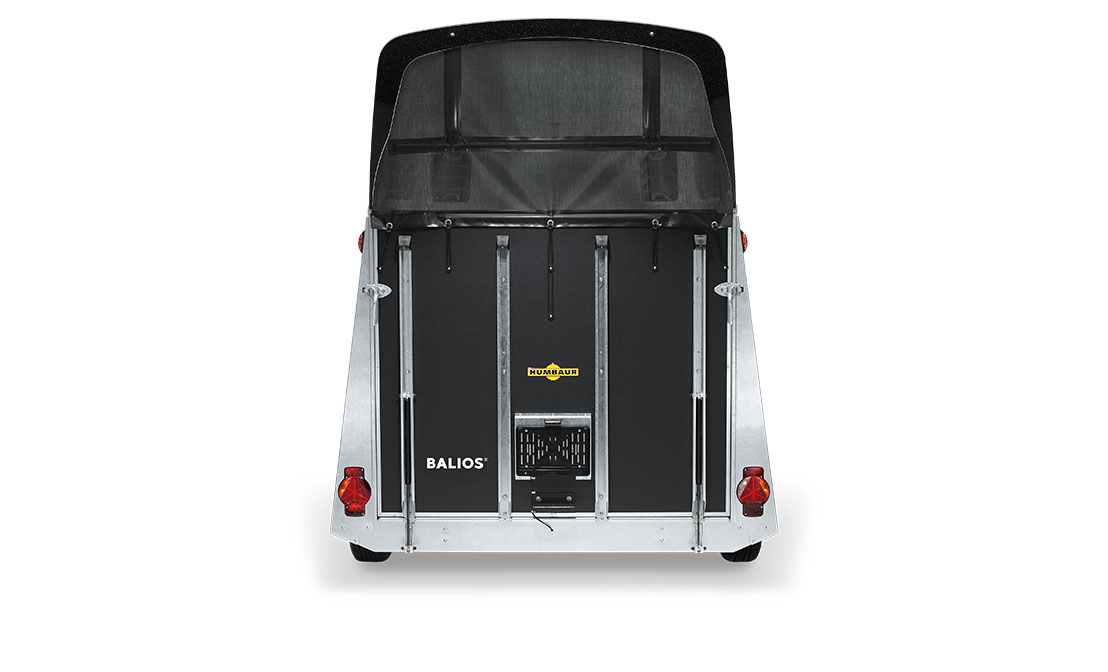

Balios AERO silhouette backside
Inner width 1.714 mmTotal width 2.235 mm

Balios AERO Standard equipment

  • EquiDrive® chassis and preparation for shock absorbers
  • Model 7606 Balios AERO 2700 with EquiDrive® PLUS chassis and automatic brake adjustment and shock absorbers
  • Model 7608 Balios AERO 2700 S including EquiDrive® PLUS S chassis with coil spring suspension
  • High quality 18 mm Plywood side panels, plastic-coated and UV-resistant
  • AERO-dynamical front
  • Lockable saddle compartment, with saddle carrier, snaffle holder, mirror and stowing net
  • 13-pin plug with reversing and fog light
  • 21 mm resin coated plywood base plate
  • 8 mm rubber flooring, glued on and sealed
  • Sturdy surrounding frame section (hot-dip galvanised)
  • Elegant galvanised tail supports with integrated lighting
  • Entry and service door with 3-point locking mechanism
  • Rear ramp with rubber granulate mat
  • Split and padded breast and breeching bars with panic release, height- and lengthwise adjustable
  • EquiLock® lockable partition wall
  • New designed, tinted and 5-way adjustable vent windows
  • Interior lighting
  • Exclusive roller wind deflector for draught-free interior ventilation
  • Automatic jockey wheel, centre mounted
  • Side panels black, GRP roof and front Silver Metallic
  • Tyres designed for 60 mph

Balios AERO Models

Model
Balios Aero 2000
Balios Aero 2400
Balios Aero 2700
Balios Aero 2700 S
Permissible gross weight in kg
2000
2400
2700
2700
Load capacity in kg
1153
1545
1841
1791
Body dimensions in mm (LxWxH)
4592 x 2235 x 2875
4592 x 2235 x 2875
4592 x 2235 x 2855
4592 x 2235 x 2855
Internal dimensions in mm (LxWxH)
3447 x 1714 x 2364
3447 x 1714 x 2364
3447 x 1714 x 2364
3447 x 1714 x 2364
braked
✓
✓
✓
✓
Load height in mm
445
445
445
445
Tyre size in inches
15
15
15
15

Balios Aero 2000

Permissible gross weight in kg
2000
braked
Body dimensions in mm (LxWxH)
4592 x 2235 x 2875
Tyre size in inches
15
Internal dimensions in mm (LxWxH)
3447 x 1714 x 2364
Load capacity in kg
1153
Load height in mm
445



Balios Aero 2400

Permissible gross weight in kg
2400
braked
Body dimensions in mm (LxWxH)
4592 x 2235 x 2875
Tyre size in inches
15
Internal dimensions in mm (LxWxH)
3447 x 1714 x 2364
Load capacity in kg
1545
Load height in mm
445



Balios Aero 2700

Permissible gross weight in kg
2700
braked
Body dimensions in mm (LxWxH)
4592 x 2235 x 2855
Tyre size in inches
15
Internal dimensions in mm (LxWxH)
3447 x 1714 x 2364
Load capacity in kg
1841
Load height in mm
445



Balios Aero 2700 S

Permissible gross weight in kg
2700
braked
Body dimensions in mm (LxWxH)
4592 x 2235 x 2855
Tyre size in inches
15
Internal dimensions in mm (LxWxH)
3447 x 1714 x 2364
Load capacity in kg
1791
Load height in mm
445



How many horses can I transport?

Two ponies

Two ponies

You can comfortably transport two ponies in the Balios® AERO.

One horse

One horse

Of course, a single horse can also enjoy the comfort of the Humbaur-EquiSpace®.

A pair of horses

A pair of horses

Two fully grown horses can also travel conveniently.

Two heavy horses

Two heavy horses

... also have adequate space in the roomy Balios® AERO horse trailer.

A Humbaur is well planned

Two unicorns

We have also fulfilled the wishes which you believe nobody can fulfil.

Images similar; some images show special equipment.
