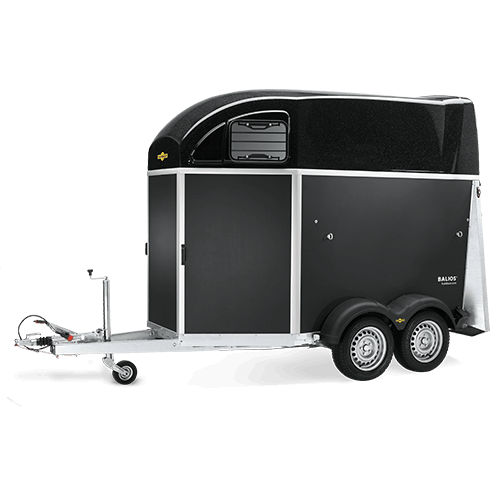

The safe model

a high level of comfort and safety for your horse

To let your horse travel in comfort: The new EquiSpace© design concept provides your horse with maximum freedom of movement and safety. The padded, body-formed chest and rear rods can be adjusted precisely to the right length and height. The EquiDrive© chassis, which now also comes in the fully-outfitted PLUS version, ensures a smooth driving experience. The wooden body of the Balios© has an easy-to-clean polyester roof. The modern design makes the Balios© a star among our wood/polyester trailers.

The Balios® horse trailer in detail:

EquiDrive® Standard longitudinal beam chassis
i
  • EquiDrive® Standard longitudinal beam chassis (Balios® 2700 with EquiDrive® PLUS chassis with automatic adjustment of the brake and wheel shock absorbers).



High-grade black side walls
i
  • Side walls made of high-quality, plastic-coated and UV-resistant drop sides, 18 mm thick. Black side walls



Polyester roof with tinted vent windows
i
  • Polyester roof in silver or black metallic with tinted vent windows in a new design, 5 settings.
  • Polyester roof available in the entire RAL colour pallete (at an additional charge).



13-pin plug with reversing and fog lights
i
  • 13-pin plug with reversing and fog lights



Sturdy floor plate
i
  • Phenolic resin coating floor plate, multibonded, waterproofed, 21 mm thick, with rubber floor 8 mm thick, glued and sealed.



Solid, all-round and hot-dip galvanised frame profile
i
  • Solid, all-round and hot-dip galvanised frame profile.



Elegant rear support
i
  • Elegant, hot-dip galvanised rear outrigger with integrated lighting.



Large access door with 3-point locking
i
  • Large access door with 3-point locking.



Ramp flap with granulate mat
i
  • Ramp flap with granulate mat.



EquiSpace® space concept
i
  • EquiSpace® space concept. Maximum space for the horses thanks to the sophisticated Humbaur EquiSpace® interior concept.
  • The chest and breech bars are divided and padded, adjustable in height and length, and complete with panic unlocking.



Split and padded breast and breech bars with panic release
i
  • Split and padded breast and breech bars, length- and height-adjustable with panic release.



Interior lighting
i
  • The Humbaur interior lighting creates a pleasant atmosphere in the twilight for horse and human.



Openings for light and air in the interior
i
  • The exclusive Windschott (deflector) offers draft-free ventilation and continuous air circulation.



Automatic jockey wheel
i
  • Automatic jockey wheel, centrally mounted.



Tyre size suitable for 100 km/h
i
  • Tyre size suitable for 100 km/h. Balios® 2700 model, incl. wheel shock absorbers and 100 km/h confirmation.



Designed for convenient transport of two horses.
The EquiDrive® chassis ensures the highest stability and thus the best possible safety.
The EquiDrive® PLUS Chassis with automatic brake adjustment (Balios®2700).
 EquiSpace® - our space concept for maximum room for the horses.

Technical data

Balios

ca. 2870 -
2890 mm
ca. 4642 mm
ca. 1714 mm

Balios Standard equipment

  • Chassis EquiDrive®""
  • Model 7605 Balios 2700 including EquiDrive PLUS chassis with automatic brake adjustment and shock absorbers
  • Preparation for shock absorbers (model 7601, 7603)
  • High quality 18 mm plywood side panels, plastic-coated and UV-resistant
  • 13-pin plug with reversing and fog light
  • 21 mm resin coated plywood base plate
  • 8 mm rubber flooring, glued on and sealed
  • Sturdy surrounding frame section (hot-dip galvanised)
  • Elegant galvanised tail support with integrated lighting
  • Entry and service door with 3-point locking mechanism
  • Rear ramp with rubber granulate mat
  • Split and padded breast and breeching bars, height- and lengthwise adjustable, panic release for breast bar
  • New designed, tinted and 5-way adjustable vent windows
  • Interior lighting
  • Exclusive roller wind deflector for draught-free interior ventilation
  • Automatic jockey wheel, centrally mounted
  • Side panels in black, polyester roof in silver
  • Tyres designed for 60 mph

Balios Models

Permissible gross weight in kg
2000
2400
2700
Load capacity in kg
1152
1552
1852
Body dimensions in mm (LxWxH)
4642 x 2235 x 2890
4642 x 2235 x 2890
4642 x 2235 x 2870
Internal dimensions in mm (LxWxH)
3157 x 1714 x 2364
3157 x 1714 x 2364
3157 x 1714 x 2364
braked
Load height in mm
460
460
440
Tyre size in inches
15
15
15

Balios

Permissible gross weight in kg
2000
braked
Body dimensions in mm (LxWxH)
4642 x 2235 x 2890
Tyre size in inches
15
Internal dimensions in mm (LxWxH)
3157 x 1714 x 2364
Load capacity in kg
1152
Load height in mm
460



Balios

Permissible gross weight in kg
2400
braked
Body dimensions in mm (LxWxH)
4642 x 2235 x 2890
Tyre size in inches
15
Internal dimensions in mm (LxWxH)
3157 x 1714 x 2364
Load capacity in kg
1552
Load height in mm
460



Balios

Permissible gross weight in kg
2700
braked
Body dimensions in mm (LxWxH)
4642 x 2235 x 2870
Tyre size in inches
15
Internal dimensions in mm (LxWxH)
3157 x 1714 x 2364
Load capacity in kg
1852
Load height in mm
440



Equispace

Our design for a pleasant and safe journey

The refined Humbaur EquiSpace® interior ensures the most space possible for horses during transport in the trailer and forms part of the standard models for Balios®, Xanthos®, Zephir® and Notos® as well as their various AERO versions. The roof, which projects forward, offers your horse freedom of movement of the head at ear height. The interior height in this area is about 2300 mm.

The split, padded and moulded breast and breech bars can be individually suspended at three different levels and depths (also new for Pegasus and Maximums models). This allows the stall size in the trailer to be adjusted from pony to large horse. The solid interlock from our older models was kept for safety reasons and due to its popularity.

New brackets for breast and breech bars.
Three heights and depths are individually adjustable.

How many horses can I transport?

Two ponies

You can comfortably transport two ponies in the Balios, which is available in three weight classes.

One horse

Of course, a single horse can also enjoy the comfort of the Humbaur-EquiSpace.

A pair of horses

Two fully grown horses can also travel conveniently.

Two heavy horses

 ... also have adequate space in the roomy Balios® horse trailer .

A Humbaur is well planned

We also fulfilled the whises, which you believe nobody can fulfil.
