Single axle trailer Steely

Steely flatbed trailer

Cuts a good figure in your garden or on your building site
i

7-pin plug

i

Floor plate 9 mm thick

i

V drawbar hot-dip galvanised

i

Drop sides made of hot- dip galvanised, canted steel plate.

i

4 tie-rings on the inside of the drop sides.

i

Tailgate with tension locks

i

Pre-mounted attachment buttons for attaching the tarpaulin to the drop sides.

i

Humbaur multifunction lighting is integrated into the underride protection.

i

Corner stanchions with insert option

i

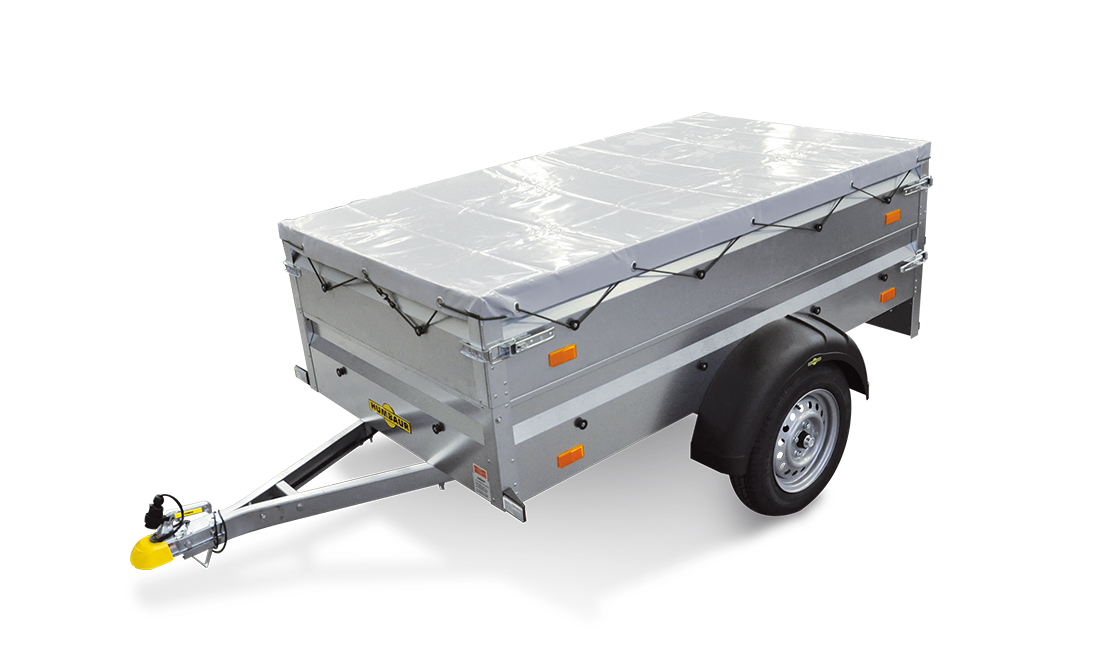

The flat tarpaulin and the side wall attachment are available as accessories. Both are shown here.

Its non-slip waterproof wooden floor and sturdy design make the Steely flatbed trailer a convincing proposal in the garden and on the building site. Elegant toggle-type fasteners keep the tailgate safely closed. Do you need a flatbed or raised tarpaulin? Fastening buttons are already pre-installed - you can retrofit one at any time.

The flatbed trailer Steely in detail:

7-pin plug
Floor plate 9 mm thick
V drawbar hot-dip galvanised
Drop sides made of hot- dip galvanised, canted steel plate
4 tie-rings on the inside of the drop sides
Tailgate with tension locks
Pre-mounted attachment buttons
Multifunction lighting
Corner stanchions with insert option
Flat tarpaulin, side wall attachment

360° view

Technical data

Steely

Trailer Steely in detail
Steely silhouette sideview
Inner height 300 mmTotal height 805 mm
Inner length 2.050 mmTotal length 2.960 mm
Steely silhouette backside
Inner width 1.095 mmTotal width 1.545 mm

Steely Standard equipment

  • 7-pin plug
  • 9 mm thick base plate
  • Drop-sides made of hot-dip galvanised sheet steel
  • Tailgate with toggle locks
  • 4 tie rings on the inside of the drop-sides
  • Pre-assembled fastening buttons for tarpaulin attachment to the drop-sides
  • Humbaur multifuntional lights integrated in underride barrier
  • Corner stanchions with plug-in option
  • V drawbar

Steely Models

Permissible gross weight in kg
750
Load capacity in kg
630
Body dimensions in mm (LxWxH)
2960 x 1545 x 805
Internal dimensions in mm (LxWxH)
2050 x 1095 x 300
braked
-
Load height in mm
495
Tyre size in inches
13

Steely

Permissible gross weight in kg
750
braked
Body dimensions in mm (LxWxH)
2960 x 1545 x 805
Tyre size in inches
13
Internal dimensions in mm (LxWxH)
2050 x 1095 x 300
Load capacity in kg
630
Load height in mm
495



Images similar; some images show special equipment.
