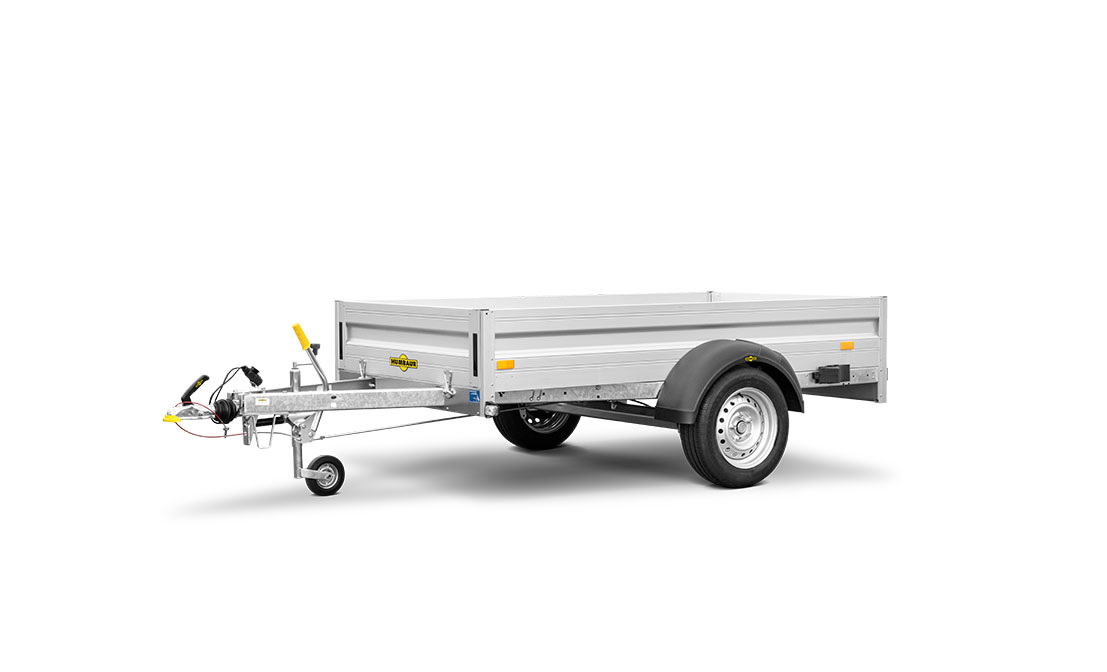

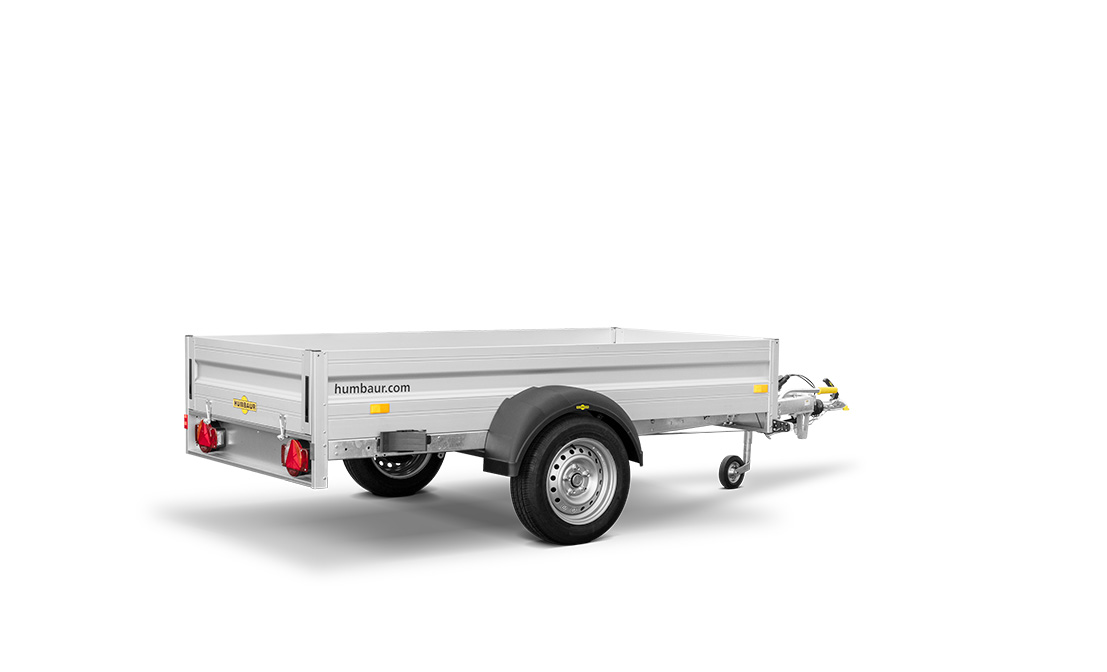

Single axle trailer HA

The universal work horse

versatile and robust
i

V drawbar, hot-dip galvanised

i

13-pin plug and reversing light

i

Floor plate 15 mm thick

i

Drop sides made of anodised, double-walled aluminium profiles.

i

Back flap with recessed locks.

i

Flap with recessed locks (optional)

i

Tie-down rings (4 units up to 2050 mm / 6 units up to 2510 mm box length) integrated into the drop sides (only possible with 350 mm drop sides), tractive force 400 kg per lashing ring, Dekra-tested.

i

Humbaur multifunction lighting is integrated into the underride protection.

i

Corner stanchions with insert option

i

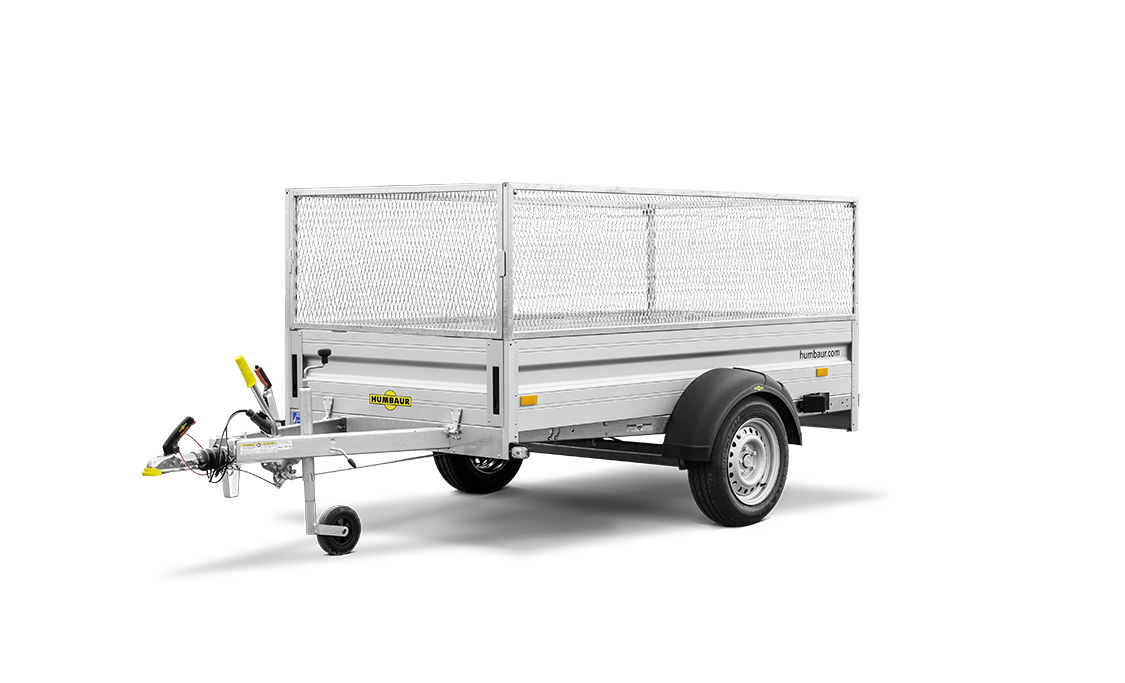

The steel grid attachment and the cover net are available as accessories. Both are shown here.

This one can do almost anything! The large selection of accessories allows you to equip the HA flatbed trailer for a wide range of applications. It transports your motorcycles, bicycles, garden tools and much more. The load is lashed down using the lashing brackets recessed in the aluminium drop sides to prevent it from sliding around.

The flatbed trailer HA in detail:

V drawbar, hot-dip galvanised
13-pin plug and reversing light
Floor plate 15 mm thick
Drop sides made of aluminium profiles
Back flap with recessed locks
Flap with recessed locks (optional)
Tie-down rings integrated into the drop sides
Multifunction lighting
Corner stanchions with insert option
Steel grid attachment, cover net (optional)

360° view

Technical data

Single axle aluminium HA

Trailer Single axle aluminium HA in detail
Single axle aluminium HA silhouette sideview
Inner height 350 mmTotal height 865 mm
Inner length 1.650 mmTotal length 2.680 mm
Single axle aluminium HA silhouette backside
Inner width 1.100 mmTotal width 1.548 mm

Single axle aluminium HA Standard equipment

  • Hot-dip galvanised v-shaped coupling
  • 13-pin plug, for max. gross above 751 kg with reversing light
  • 15 mm thick base plate
  • Side panels and gates made of double-walled anodised aluminium
  • Flap(s) with sunk-in closings
  • Lashing rings (4 units up to 2050 mm box length, 6 units for 2510 mm box length and above) integrated in side panel profiles, traction force 400 kg per lashing ring, DEKRA tested
  • Humbaur multifuntional light integrated in underride barrier
  • Corner stanchions with plug-in option

Single axle aluminium HA Models

Permissible gross weight in kg
750
750
750
1000
750
750
750
1000
750
750
1300
1300
1500
1500
1300
1500
Load capacity in kg
625
608
610
822
602
602
551
801
585
581
1063
1058
1253
1248
1020
1209
Body dimensions in mm (LxWxH)
2680 x 1548 x 870
2815 x 1550 x 870
3025 x 1548 x 870
3215 x 1550 x 905
3035 x 1760 x 870
3035 x 1760 x 870
3215 x 1770 x 890
3215 x 1770 x 890
3580 x 1760 x 865
3580 x 1760 x 865
3780 x 1810 x 905
3760 x 1810 x 905
3760 x 1810 x 875
3760 x 1810 x 915
4320 x 2004 x 935
4320 x 2004 x 940
Internal dimensions in mm (LxWxH)
1650 x 1100 x 350
1650 x 1100 x 350
2050 x 1100 x 350
2050 x 1100 x 350
2050 x 1310 x 350
2050 x 1310 x 350
2050 x 1310 x 350
2050 x 1310 x 350
2510 x 1310 x 350
2510 x 1310 x 350
2510 x 1310 x 350
2510 x 1310 x 350
2510 x 1310 x 350
2510 x 1310 x 350
3030 x 1500 x 350
3030 x 1500 x 350
braked
-
-
-
-
-
-
Load height in mm
510
510
510
525
510
510
530
530
510
510
530
530
565
565
585
590
Tyre size in inches
13
13
13
13
13
13
13
13
13
13
14
14
14
14
15
14

HA 751611 FS

Permissible gross weight in kg
750
braked
Body dimensions in mm (LxWxH)
2680 x 1548 x 870
Tyre size in inches
13
Internal dimensions in mm (LxWxH)
1650 x 1100 x 350
Load capacity in kg
625
Load height in mm
510



HA 751611 FS/G

Permissible gross weight in kg
750
braked
Body dimensions in mm (LxWxH)
2815 x 1550 x 870
Tyre size in inches
13
Internal dimensions in mm (LxWxH)
1650 x 1100 x 350
Load capacity in kg
608
Load height in mm
510



HA 752111

Permissible gross weight in kg
750
braked
Body dimensions in mm (LxWxH)
3025 x 1548 x 870
Tyre size in inches
13
Internal dimensions in mm (LxWxH)
2050 x 1100 x 350
Load capacity in kg
610
Load height in mm
510



HA 102111

Permissible gross weight in kg
1000
braked
Body dimensions in mm (LxWxH)
3215 x 1550 x 905
Tyre size in inches
13
Internal dimensions in mm (LxWxH)
2050 x 1100 x 350
Load capacity in kg
822
Load height in mm
525



HA 752113 KV

Permissible gross weight in kg
750
braked
Body dimensions in mm (LxWxH)
3035 x 1760 x 870
Tyre size in inches
13
Internal dimensions in mm (LxWxH)
2050 x 1310 x 350
Load capacity in kg
602
Load height in mm
510



HA 752113 FS

Permissible gross weight in kg
750
braked
Body dimensions in mm (LxWxH)
3035 x 1760 x 870
Tyre size in inches
13
Internal dimensions in mm (LxWxH)
2050 x 1310 x 350
Load capacity in kg
602
Load height in mm
510



HA 752113 KV/G

Permissible gross weight in kg
750
braked
Body dimensions in mm (LxWxH)
3215 x 1770 x 890
Tyre size in inches
13
Internal dimensions in mm (LxWxH)
2050 x 1310 x 350
Load capacity in kg
551
Load height in mm
530



HA 102113 KV

Permissible gross weight in kg
1000
braked
Body dimensions in mm (LxWxH)
3215 x 1770 x 890
Tyre size in inches
13
Internal dimensions in mm (LxWxH)
2050 x 1310 x 350
Load capacity in kg
801
Load height in mm
530



HA 752513 FS

Permissible gross weight in kg
750
braked
Body dimensions in mm (LxWxH)
3580 x 1760 x 865
Tyre size in inches
13
Internal dimensions in mm (LxWxH)
2510 x 1310 x 350
Load capacity in kg
585
Load height in mm
510



HA 752513 KV

Permissible gross weight in kg
750
braked
Body dimensions in mm (LxWxH)
3580 x 1760 x 865
Tyre size in inches
13
Internal dimensions in mm (LxWxH)
2510 x 1310 x 350
Load capacity in kg
581
Load height in mm
510



HA 132513 FS

Permissible gross weight in kg
1300
braked
Body dimensions in mm (LxWxH)
3780 x 1810 x 905
Tyre size in inches
14
Internal dimensions in mm (LxWxH)
2510 x 1310 x 350
Load capacity in kg
1063
Load height in mm
530



HA 132513 KV

Permissible gross weight in kg
1300
braked
Body dimensions in mm (LxWxH)
3760 x 1810 x 905
Tyre size in inches
14
Internal dimensions in mm (LxWxH)
2510 x 1310 x 350
Load capacity in kg
1058
Load height in mm
530



HA 152513 FS

Permissible gross weight in kg
1500
braked
Body dimensions in mm (LxWxH)
3760 x 1810 x 875
Tyre size in inches
14
Internal dimensions in mm (LxWxH)
2510 x 1310 x 350
Load capacity in kg
1253
Load height in mm
565



HA 152513 KV

Permissible gross weight in kg
1500
braked
Body dimensions in mm (LxWxH)
3760 x 1810 x 915
Tyre size in inches
14
Internal dimensions in mm (LxWxH)
2510 x 1310 x 350
Load capacity in kg
1248
Load height in mm
565



HA 133015 KV

Permissible gross weight in kg
1300
braked
Body dimensions in mm (LxWxH)
4320 x 2004 x 935
Tyre size in inches
15
Internal dimensions in mm (LxWxH)
3030 x 1500 x 350
Load capacity in kg
1020
Load height in mm
585



HA 153015 KV

Permissible gross weight in kg
1500
braked
Body dimensions in mm (LxWxH)
4320 x 2004 x 940
Tyre size in inches
14
Internal dimensions in mm (LxWxH)
3030 x 1500 x 350
Load capacity in kg
1209
Load height in mm
590



Technical data

HA Allrounder

Trailer HA Allrounder in detail
HA Allrounder silhouette sideview
Inner height 400 mmTotal height 955 mm
Inner length 2.510 mmTotal length 3.760 mm
HA Allrounder silhouette backside
Inner width 1.310 mmTotal width 1.810 mm

HA Allrounder Standard equipment

  • Hot-dip galvanised v-shaped coupling
  • 13-pin plug, for max. gross above 751 kg with reversing light
  • 15 mm thick base plate
  • Side panels and gates made of double-walled anodised aluminium
  • Flap(s) with sunk-in closings
  • Lashing rings (4 units up to 2050 mm box length, 6 units for 2510 mm box length and above) integrated in side panel profiles, traction force 400 kg per lashing ring, DEKRA tested
  • Humbaur multifuntional light integrated in underride barrier
  • Corner stanchions with plug-in option

HA Allrounder Models

Permissible gross weight in kg
1300
Load capacity in kg
1011
Body dimensions in mm (LxWxH)
3760 x 1810 x 955
Internal dimensions in mm (LxWxH)
2510 x 1310 x 400
braked
Load height in mm
530
Tyre size in inches
14

HA 13 25 13 Allrounder

Permissible gross weight in kg
1300
braked
Body dimensions in mm (LxWxH)
3760 x 1810 x 955
Tyre size in inches
14
Internal dimensions in mm (LxWxH)
2510 x 1310 x 400
Load capacity in kg
1011
Load height in mm
530



Images similar; some images show special equipment.
