Single axle trailer Startrailer

The Startrailer

It helps you – whatever you are planning to do
i

V drawbar hot-dip galvanised

i

13-pin plug

i

Floor plate 12 mm thick

i

Drop sides made of anodised, double-walled aluminium profiles.

i

Tailgate with recessed locks

i

Tie-down rings integrated into the drop sides, tractive force 400 kg per lashing ring, Dekra-tested.

i

Pre-mounted attachment buttons for attaching the tarpaulin to the drop sides.

i

Humbaur multifunction lighting is integrated into the underride protection.

i

Corner stanchions with insert option

i

Tailgate with tension locks (Models Startrailer H 752513 and H 132513)

i

Fixed front wall

i

The Soft-Dock has a soft, cushioning surface that provides optimal damage protection for the rear of the vehicle.

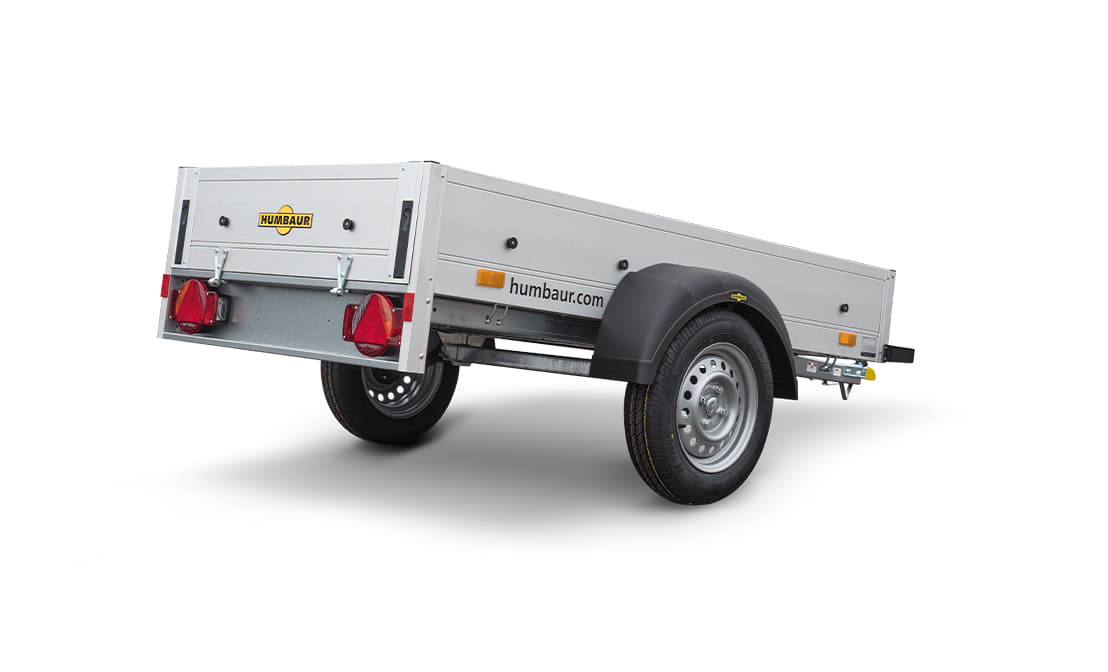

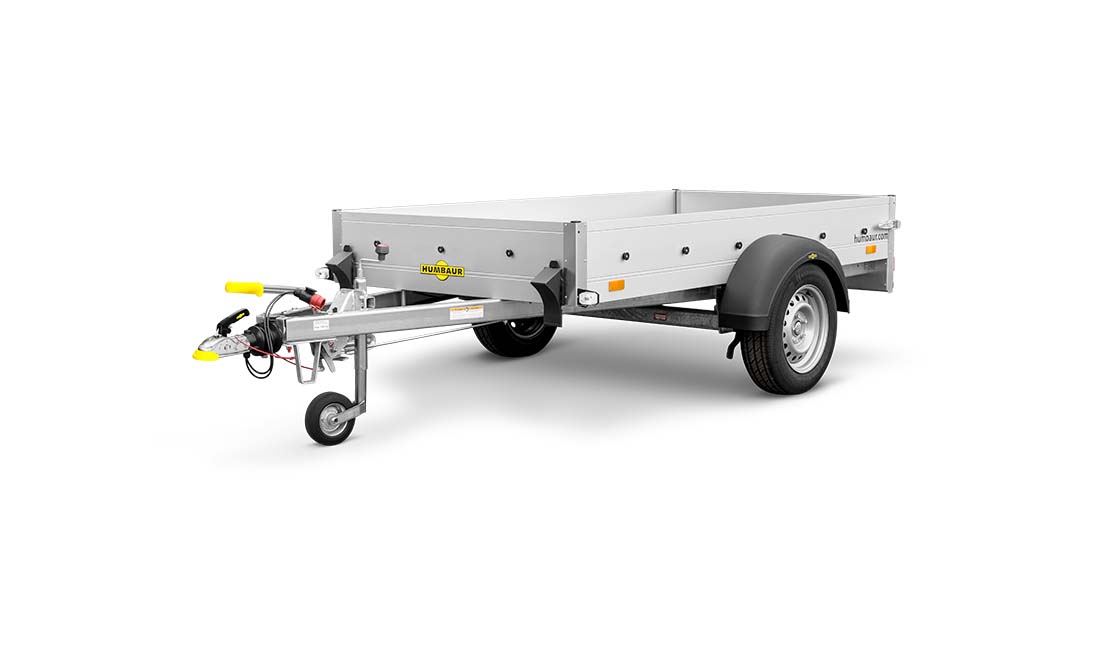

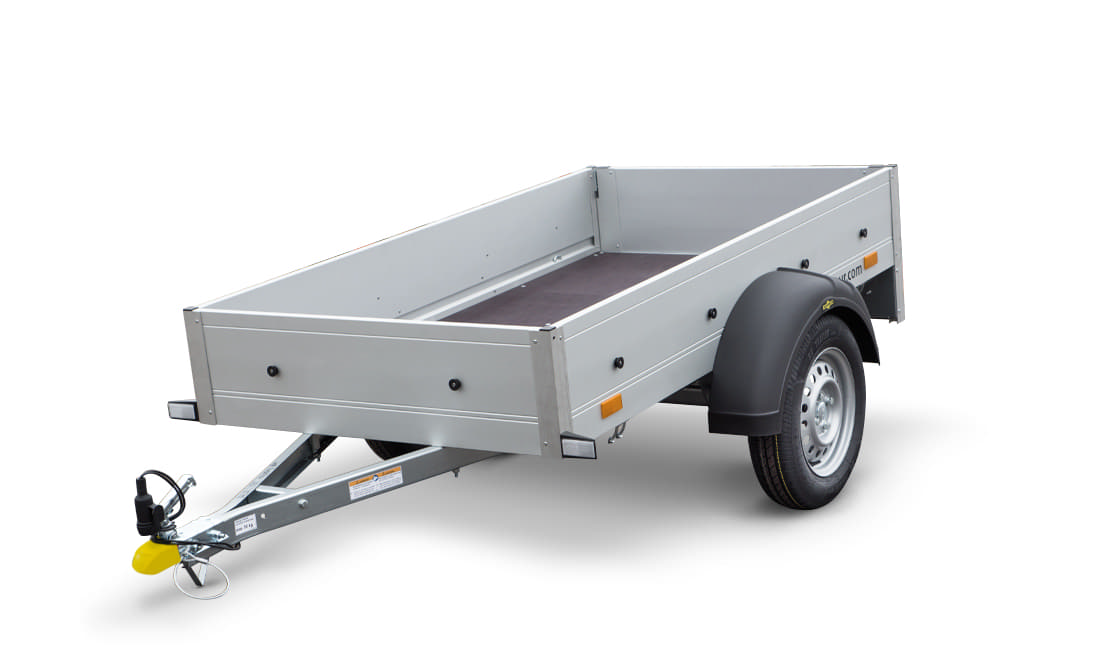

Do you need to transport garden waste, small bulk waste or larger purchases? Then you will love the Star flatbed trailer. It is particularly lightweight, can be deployed in many applications, and looks great: For example, take a look at the elegant discreetly recessed locks for the rear flap.

The flatbed trailer Startrailer in detail:

V drawbar hot-dip galvanised
13-pin plug
Floor plate 12 mm thick
Drop sides made of aluminium profiles
Tailgate with recessed locks
Tie-down rings integrated into the drop sides
Pre-mounted attachment buttons
Multifunction lighting
Corner stanchions with insert option
Tailgate with tension locks
Fixed front wall
All unbraked trailers with a ball head coupling with Soft-Dock as standard

360° view

Technical data

Startrailer

Trailer Startrailer in detail
Startrailer silhouette sideview
Inner height 300 mmTotal height 800 mm
Inner length 2.050 mmTotal length 2.970 mm
Startrailer silhouette backside
Inner width 1.095 mmTotal width 1.537 mm

Startrailer Standard equipment

  • 13-pin plug
  • 12 mm thick base plate
  • Sides in anodised, double-walled aluminium profile
  • Tailgate with stabil locks
  • lashing rings on the platform gate interior
  • Pre-installed fastening buttons for tarpaulin cover

Startrailer Models

Permissible gross weight in kg
750
750
1300
Load capacity in kg
614
602
1078
Body dimensions in mm (LxWxH)
2970 x 1537 x 800
3585 x 1760 x 800
3765 x 1800 x 830
Internal dimensions in mm (LxWxH)
2050 x 1095 x 300
2510 x 1310 x 300
2510 x 1310 x 300
braked
-
-
Load height in mm
500
500
530
Tyre size in inches
13
13
14

Startrailer H 752010

Permissible gross weight in kg
750
braked
Body dimensions in mm (LxWxH)
2970 x 1537 x 800
Tyre size in inches
13
Internal dimensions in mm (LxWxH)
2050 x 1095 x 300
Load capacity in kg
614
Load height in mm
500



Startrailer H 752513

Permissible gross weight in kg
750
braked
Body dimensions in mm (LxWxH)
3585 x 1760 x 800
Tyre size in inches
13
Internal dimensions in mm (LxWxH)
2510 x 1310 x 300
Load capacity in kg
602
Load height in mm
500



Startrailer H 132513

Permissible gross weight in kg
1300
braked
Body dimensions in mm (LxWxH)
3765 x 1800 x 830
Tyre size in inches
14
Internal dimensions in mm (LxWxH)
2510 x 1310 x 300
Load capacity in kg
1078
Load height in mm
530



Product sheet for download

Images similar; some images show special equipment.
