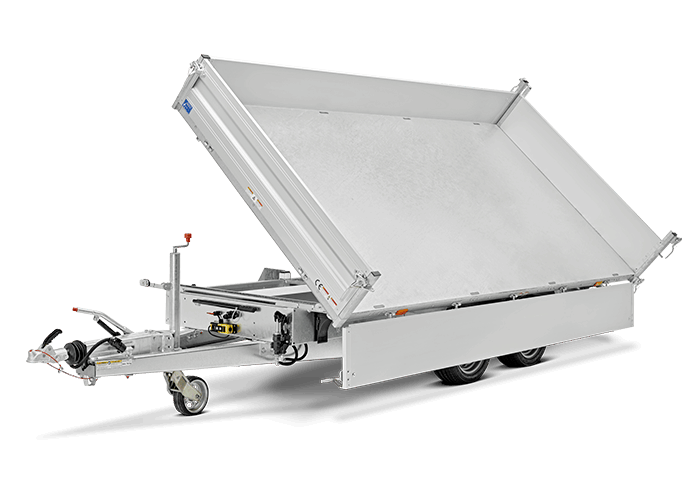

3-Way Tipper HTK
Humbaur HTK
It is indestructible, flexible and really gets the work done!
i
V drawbar screwed to welded frame construction, hot-dip galvanised by immersion bath.
i
Chassis and tipping platform hot-dip galvanised by immersion bath.
i
Tipping platform made from a single piece of steel.
i
4-step, hard-chromed tilting cylinder
i
Manual pump, optional electric hydraulic pump; electric and manual pump from 3,000 kg permissible gross weight.
i
Humbaur multifunctional lighting
i
13-pin plug and reversing light
i
Drop sides made of anodised aluminium, completely removable.
i
Rear flap swingable
i
Tie-rings integrated in the platform floor, pull force of 800 kg per tie-ring.
i
Automatic jockey wheel
i
Ramp slot in preparation for aluminium ramp for easy retrofitting.
i

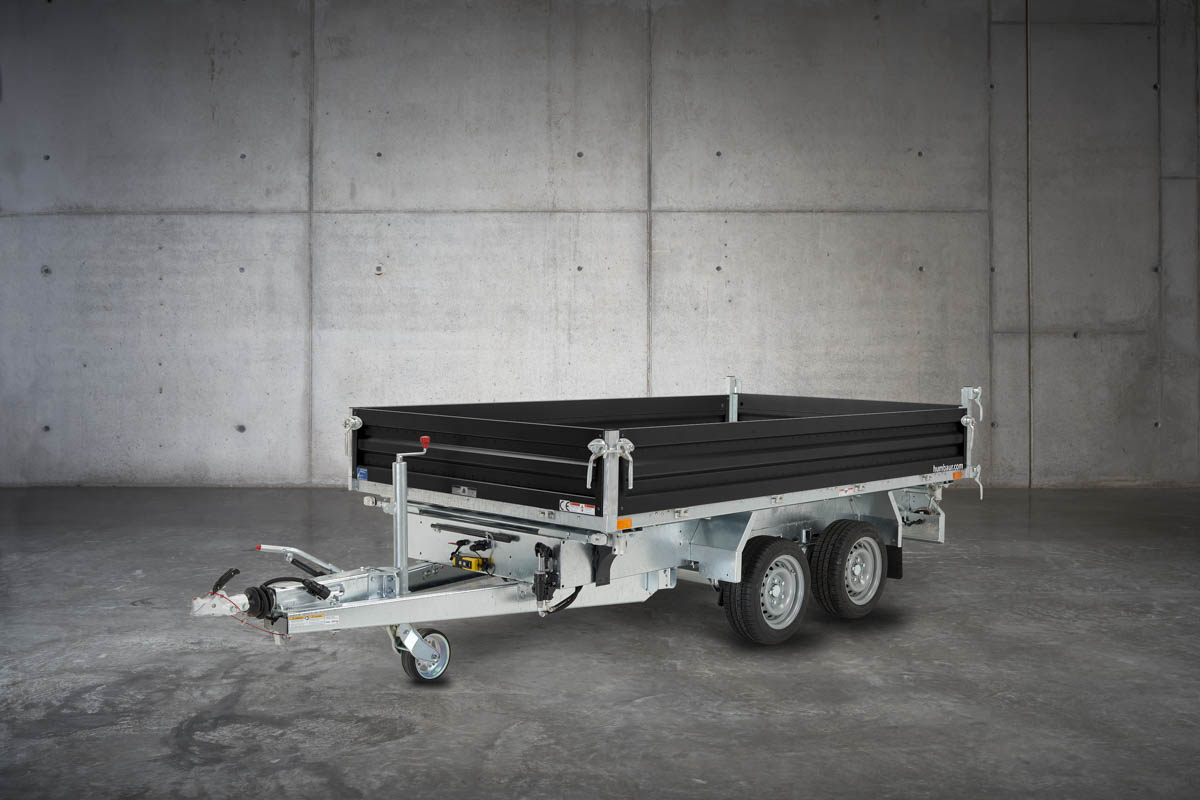

black steel sideboards (optional)
Our HTK stands out as a result of their quality and a manual pump which can, on request, be replaced by an electric hydraulic pump. From 3 000 kg upwards, you get both the electrical and the manual pump. This allows simple and independent operation of your HTK in all applications.
V drawbar screwed to welded frame construction, hot-dip galvanised by immersion bath
Chassis and tipping platform hot-dip galvanised by immersion bath
Tipping platform made from a single piece of steel
4-step, hard-chromed tilting cylinder
Manual pump, optional electric hydraulic pump
Humbaur multifunctional lighting
13-pin plug and reversing light
Drop sides made of anodised aluminium, completely removable
Rear flap swingable
Tie-rings integrated in the platform floor, pull force of 800 kg per tie-ring
Automatic jockey wheel
Ramp slot in preparation for aluminium ramp for easy retrofitting
black steel sideboards (optional)
360° view
Technical data
3-Way tipper Alu
Inner height 350 mmTotal height 1.220 mm
Inner length 2.670 mmTotal length 4.070 mm
Inner width 1.500 mmTotal width 1.680 mm
3-Way tipper Alu Standard equipment
- Hot-dip galvanised v-shaped coupling
- Hot-dip galvanised chassis and tipping platform
- Steel tipping platform manufactured in one piece
- Hand pump or for maximum permissible weights of 3,000 kg and above, electric pump with hand pump
- 13-pin plug and reversing light
- Completely removable platform gates made from anodised aluminium
- Hinged rear flap
- tie-rings mounted on the platform floor, traction force of 800 kg per tie-ring, approved by DEKRA
- Jockey wheel
- Plank shaft ready to hold aluminium ramps, for easy retrofitting
3-Way tipper Alu Models
Model
Permissible gross weight in kg
2000
2700
2700
3000
3500
3000
3500
3500
3500
2700
Load capacity in kg
1335
2025
1840
2120
2550
2100
2485
2315
2250
1820
Body dimensions in mm (LxWxH)
4070 x 1680 x 1220
4070 x 1680 x 1260
4500 x 1930 x 1260
4500 x 1930 x 1260
4500 x 1930 x 1260
5026 x 2022 x 1251
5088 x 2023 x 1251
5712 x 2280 x 1240
5720 x 2280 x 1240
4500 x 1930 x 1260
Internal dimensions in mm (LxWxH)
2670 x 1500 x 350
2670 x 1500 x 350
3140 x 1750 x 350
3140 x 1750 x 350
3140 x 1750 x 350
3630 x 1855 x 350
3630 x 1855 x 350
4100 x 2100 x 350
4100 x 2100 x 350
3140 x 1750 x 350
braked
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
Load height in mm
750
725
745
745
760
745
760
760
750
745
Tyre size in inches
13
13
13
13
13
13
13
13
13
13
HTK 2000.27
Permissible gross weight in kg
2000
braked
Body dimensions in mm (LxWxH)
4070 x 1680 x 1220
Tyre size in inches
13
Internal dimensions in mm (LxWxH)
2670 x 1500 x 350
Load capacity in kg
1335
Load height in mm
750
HTK 2700.27
Permissible gross weight in kg
2700
braked
Body dimensions in mm (LxWxH)
4070 x 1680 x 1260
Tyre size in inches
13
Internal dimensions in mm (LxWxH)
2670 x 1500 x 350
Load capacity in kg
2025
Load height in mm
725
HTK 2700.31
Permissible gross weight in kg
2700
braked
Body dimensions in mm (LxWxH)
4500 x 1930 x 1260
Tyre size in inches
13
Internal dimensions in mm (LxWxH)
3140 x 1750 x 350
Load capacity in kg
1840
Load height in mm
745
HTK 3000.31
Permissible gross weight in kg
3000
braked
Body dimensions in mm (LxWxH)
4500 x 1930 x 1260
Tyre size in inches
13
Internal dimensions in mm (LxWxH)
3140 x 1750 x 350
Load capacity in kg
2120
Load height in mm
745
HTK 3500.31
Permissible gross weight in kg
3500
braked
Body dimensions in mm (LxWxH)
4500 x 1930 x 1260
Tyre size in inches
13
Internal dimensions in mm (LxWxH)
3140 x 1750 x 350
Load capacity in kg
2550
Load height in mm
760
HTK 3000.37
Permissible gross weight in kg
3000
braked
Body dimensions in mm (LxWxH)
5026 x 2022 x 1251
Tyre size in inches
13
Internal dimensions in mm (LxWxH)
3630 x 1855 x 350
Load capacity in kg
2100
Load height in mm
745
HTK 3500.37
Permissible gross weight in kg
3500
braked
Body dimensions in mm (LxWxH)
5088 x 2023 x 1251
Tyre size in inches
13
Internal dimensions in mm (LxWxH)
3630 x 1855 x 350
Load capacity in kg
2485
Load height in mm
760
HTK 3500.41
Permissible gross weight in kg
3500
braked
Body dimensions in mm (LxWxH)
5712 x 2280 x 1240
Tyre size in inches
13
Internal dimensions in mm (LxWxH)
4100 x 2100 x 350
Load capacity in kg
2315
Load height in mm
760
HTK 3500.41 Tridem
Permissible gross weight in kg
3500
braked
Body dimensions in mm (LxWxH)
5720 x 2280 x 1240
Tyre size in inches
13
Internal dimensions in mm (LxWxH)
4100 x 2100 x 350
Load capacity in kg
2250
Load height in mm
750
HTK 2700.31 mit E-Pumpe
Permissible gross weight in kg
2700
braked
Body dimensions in mm (LxWxH)
4500 x 1930 x 1260
Tyre size in inches
13
Internal dimensions in mm (LxWxH)
3140 x 1750 x 350
Load capacity in kg
1820
Load height in mm
745
