Series 5000

Overview

Box trailers

Show only:
Box trailers list view
close

Plywood tandem box trailer

Well-designed and with a long service life: the tried and trusted HK plywood box trailer for safe transport of your goods. The frame and chassis are made of hot-dip galvanised steel, while solid aluminium reinforcements on the body ensure stability. The roof has drainpipes and the doors have seals to keep your goods dry under all circumstances. A solid anti-slip floor and stable side walls (18 mm thick) provide solidity. An interior light will help you find everything you are looking for. A brief summary: A real multi-talent on two axles.

Plywood tandem box trailer

Trailer in detail
close

Single-axle plywood box trailer with wood/aluminium cover

Even large and bulky goods can be easily loaded into the HKU. You can simply lift up the cover and use standard transport aids to load your goods via the back wall. The ramp wall is supported by gas springs for easier handling. The trailer is locked with an espagnolette lock for the rear wall and two locks for the cover. The trailer has an integrated tie-down system, with each tie-down eye able to withstand a tensile force of 400 kg (as tested by Dekra). The floor and walls are 15 mm thick. The floor also has an anti-slip coating.

Single-axle plywood
box trailer with
wood/aluminium cover

close

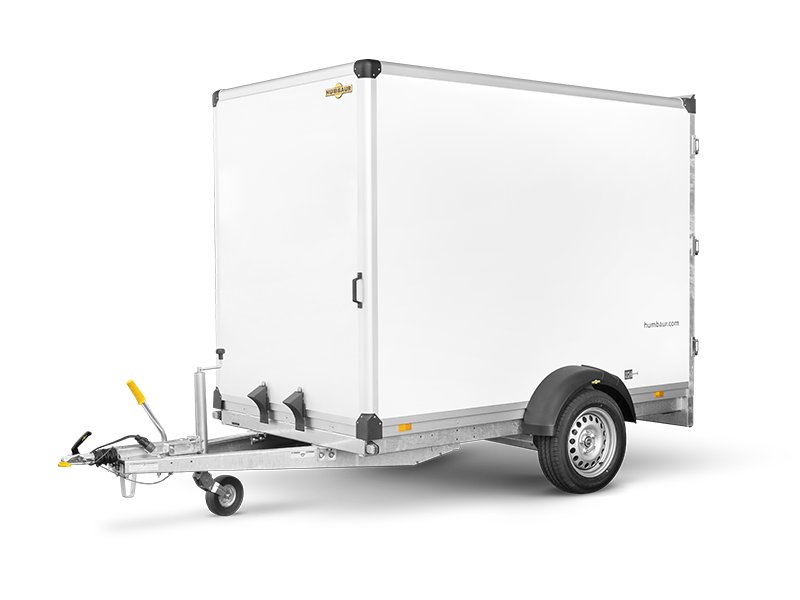

Single-axle plywood box trailer

Our single-axle trailer offers maximum stability: hot-dip galvanised steel chassis, plastic door seals, robust reinforcements in the roof area and at the front wall - this trailer has a long service life. The integrated lashing system secures the load inside the trailer. A light ensures adequate illumination.So your goods reach their destination reliably and undamaged. A perfect advertising medium: At a surcharge, we will display your individual advertising message on the side walls of the single-axle trailer. This allows you to benefit in the long term.

Single-axle plywood box trailer

close

Single axle box trailer HKT, lowerable platform

The clever box trailer with an intelligent lowering mechanism. The cargo bed moves towards you for loading and unloading. The flat drive-up angle is just 4 to 6 degrees. With the integrated access ramp and upwards opening tailgate, this trailer is the perfect partner for comfortable loading. A solid anti- slip floor and stable side walls with a GRP coating ensure durability. With the optional rocker, it is ideal for transporting motorcycles.

Single Axle HKT

Offers assistance at the loading

lowerable
platform

close

Tandem sandwich box flatbed trailer - Flexbox

A traditional trailer with a sturdy, long-lasting sandwich box. 18 mm thick special wood for the floor and 30 mm panels for the walls are evidence of its robust construction. The low loading height and a payload of one to two tonnes (depending on the version) make the HK with its external wheels a particularly flexible solution. Its metal components are either made from rust-proof aluminium or hot-dip galvanised steel. An anti-slip, coated floor and door seals demonstrate the detailed design to ensure that this trailer will provide you with day-to-day support.

Tandem sandwich box flatbed trailer - Flexbox

Trailer in detail
close

Single-axle sandwich flatbed trailer

This traditional single-axle sandwich box trailer is available in many different sizes. Your goods are well protected between the 30 mm sandwich panels. The walls have a polyurethane core and are coated with galvanised, powder-coated steel plate on both sides. They are thus as protected against corrosion as the aluminium edgings and the rear door. Plastic seals reliably keep out any moisture. The chassis and the frame are corrosion-protected to ensure that you can enjoy your box trailer for longer.

Single-axle sandwich flatbed trailer

Trailer in detail
close

Lift platform trailer with box body

Conveniently load heavy goods into the trailer and keep them safe and dry during transportation with the lift platform trailer with box body from Humbaur. The tandem trailer has a stable frame, which has been hot-dip galvanised in an immersion bath. The 18-mm-thick screen-printed floor plate can withstand all loads, the bottom tracks have adjustable tie-down points for securing cargo. The box body is composed of 30-mm-thick sandwich panels with a white-painted steel outer layer. The customer can select the rear liftgate as a required accessory to suit their needs. The 13-pin trailer connector has a 2-pin outlet for trickle charging. The interior of the lift platform trailer with box body is equipped with LED lighting with motion detector. The lift platform trailer can also be equipped at the front with a double-hinge door with espagnolette lock and hinges made from stainless steel. Other accessories include various additional systems for securing cargo, wheel shock absorbers with and without approval to drive at speeds of up to 100 km/h and more.

Lift platform trailer with box body

Freezer box trailer

Trailer in detail
close

Tandem sandwich box wheels-in trailer

This is how you easily load even heavy things into your box trailer: with a loading height of only 645 / 785 mm. This low-level tandem- axle trailer is perfectly finished and protected against corrosion. The sturdy body is made using 30 mm thick sandwich panels consisting of a steel covering on both sides with polyester lacquer coating as well as with a polyurethane-foam core. The edging and rear door are made of aluminium. Parts subject to more wear and tear such as the hinges or the door locks are made of stainless steel. The trailer is waterproof to ensure that your goods are dry when they arrive.

Tandem sandwich box wheels-in trailer

close

Construction site trailer

The mobile lounge with every amenity. The trailer can accommodate up to 6 persons and can be optionally equipped with a fixed seat group, consisting of two seats and a table. The trailer can be equipped with a wide range of accessories and adapted to your needs - e.g. with heating fan, sliding window in front and side wall, roof window, main voltage connector 230 V, distributor boxes etc.

Construction site trailer

Trailer in detail
close

Tandem sandwich box wheels-in trailer low

This is how you easily load even heavy things into your box trailer: with a loading height of only 645 / 785 mm. This low-level tandem- axle trailer is perfectly finished and protected against corrosion. The sturdy body is made using 30 mm thick sandwich panels consisting of a steel covering on both sides with polyester lacquer coating as well as with a polyurethane-foam core. The edging and rear door are made of aluminium. Parts subject to more wear and tear such as the hinges or the door locks are made of stainless steel. The trailer is waterproof to ensure that your goods are dry when they arrive.

Tandem sandwich box wheels-in trailer low

Trailer in detail
close

All-poly trailer Rexus

It looks good and proves itself in day-to-day use. Our Rexus is the designer trailer for all those looking for a high-profile appearance. With its chrome decorated lights, aluminium rims and the visual appearance of an elegant horse trailer it catches attention. At the same time, it is highly suitable for everyday use. Its corrosion protected chassis has been successfully in use in our horse trailers for to 100 km/h. A 21 mm thick anti-slip base plate and side walls reinforced with wood panels stand for solidity. The side door offers extra comfortable access to the trailer. The tailgate can handle payloads of up to 1300 kg. What more could you wish for?

All-poly trailer Rexus

Trailer in detail
close

HK tandem axle plywood

The tandem plywood box is attractive with ist sophisticated detailed solutions and is versatile uses. The frame and chassis are made of hot-dip galvanized steel and give the plywood box series a long service life. The side walls are made of 15 mm multilayer wood (with the HK25 4018-20P, 18 mm thick) with special plastic coating which, if desired, can be covered with your company's advertising for an additional charge. The roof consists of a GRP panel (not with the HK25 4018-20P) with additional galvanized steel support beams in the interior. Optimal illumination of the interior is guaranteed by means of this translucent GRP roof All plywood boxes are equipped with hinges and a lockable espagnolette made of galvanized steel (stainless steel with the HK25 4018-20P). Plastic seals that make waterproof transport of your goods possible are mounted on the doors. The solid galvanized and powder-coated steel corner reinforcements in the roof area and on the front wall below give the Humbaur plywood box extreme stability. The floor of the plywood box consists of special multi-bonded wood so as to be waterproof. It has slip-resistant phenolic resin coating and is 15 mm thick (with the HK25 4018-20P, 18 mm thick). The integrated side tie-down system (not with the HK25 4018-20P) is fitted in the anodised aluminium frame profiles. Each Tie-down ring has got a traction force 400 kg and is approved by DEKRA. On each side there are mounted 3 tie-down rings. This system can be expanded if so desired and gives the carrier sufficient possibilities for securing the cargo. Edge profiles, a warp-resistant rear portal and rain gutters are made of anodised aluminium and offer maximum protection against corrosion. The tandem plywood box from Humbaur, the ideal partner for transporting your goods.

HK tandem axle plywood

Trailer in detail
close

HGK Deluxe Tandem

The cooling trailers in the HGK Deluxe Tandem series offer everything you need to safely transport chilled goods: The cooling cell is constructed from 60-mm-thick PurFerro sandwich panels consisting of a polyurethane foam core with outer layers made of galvanised and powder-coated sheet steel. The 65-mm-thick insulated floor is equipped with an anti-slip coating that ensures safe loading and unloading, with the higher frictional resistance also helping to secure loads. This floor is optimally insulated and does not allow any of the cold to escape downwards. The double-wing refrigerator doors are lockable, but can always be opened from the inside in an emergency. They are connected to the trailer structure via stainless steel hinges. A 150-mm-high scuff plate made from sleet aluminium is attached to the inner walls. The frame and chassis are made of hot-dip galvanised steel, as is the welded rear portal. Four swivelling telescopic crank supports allow the car trailer to be safely parked. The bezels on the HGK Deluxe Tandem are made of anodised aluminium, as is the rear rain channel. You will find the right tandem-axle cooling trailer to meet your every need: Models with a total permissible weight from 2000 kg to 3500 kg are available; the load capacity varies from 1329 kg to 2229 kg and the loading height varies from 590 to 630 mm, both depending on the model. The cooling unit is from the well-known Govi brand and allows a temperature in the cooling trailer from +2øC to +10øC. The cooling unit is supplied via 230-V mains voltage and operates up to a maximum ambient temperature of 40øC. Cooling while driving is not possible on these trailers due to their design.

Cool trailer
HGK Deluxe Tandem

close

Cool trailer HGK Deluxe

The Humbaur HGK Deluxe is a compact cooling trailer with professional equipment. The single-axle car trailer has a load capacity of approximately 510 kg at a total permissible weight of 1300 kg. Its frame and chassis are made of hot-dip galvanised steel, as is the welded rear portal; the bezels and the rear rain channel are made of anodised aluminium. The box body is constructed from 60-mm-thick PurFerro sandwich panels consisting of a polyurethane foam core with outer layers made of galvanised and powder-coated sheet steel. The insulated floor is some 65 mm thick and does not allow any of the cold to escape downwards. It is also equipped with an anti-slip coating. The cooling unit used is from the well-known Govi brand; operating with a 230-V supply, it allows the trailer to be cooled down to temperatures from +2øC to +10øC while stationary. Cooling while driving is not possible due to the design. Four swivelling telescopic crank supports ensure that the trailer can be safely parked, while the 150-mm-high aluminium scuff plate which runs around the inside gives the surfaces extra durability.

Cool trailer HGK Deluxe

Trailer in detail

Cool trailer HGK Basic Tandem

Trailer in detail
close

Sales box trailer - basic model

Our catering trailers make selling so much easier for you in many respects. Access to your catering trailer is via a door at the front. High-quality lighting has been provided in galvanised fittings. The body has a polyurethane core and is coated with galvanised, powder-coated steel plate on both sides. The well-designed flap is on the right side and has a hinged cover with rain protection. This means that your customers are always under cover. Gas springs help you open the flap. Do you have very particular requirements for your catering trailer? Find out more about our comprehensive range of accessories.

Sales box trailer - basic model

Trailer in detail
close

Sales box trailer tandem - basic model

Our catering trailers make selling so much easier for you in many respects. Access to your catering trailer is via a door at the front. High-quality lighting has been provided in galvanised fittings. The body has a polyurethane core and is coated with galvanised, powder-coated steel plate on both ides. The well-designed flap is on the right side and has a hinged cover with rain protection. This means that your customers are always under cover. Gas springs help you open the flap. Do you have very particular requirements for your catering trailer? Find out more about our comprehensive range of accessories.

Sales box trailer tandem - basic model

Trailer in detail
