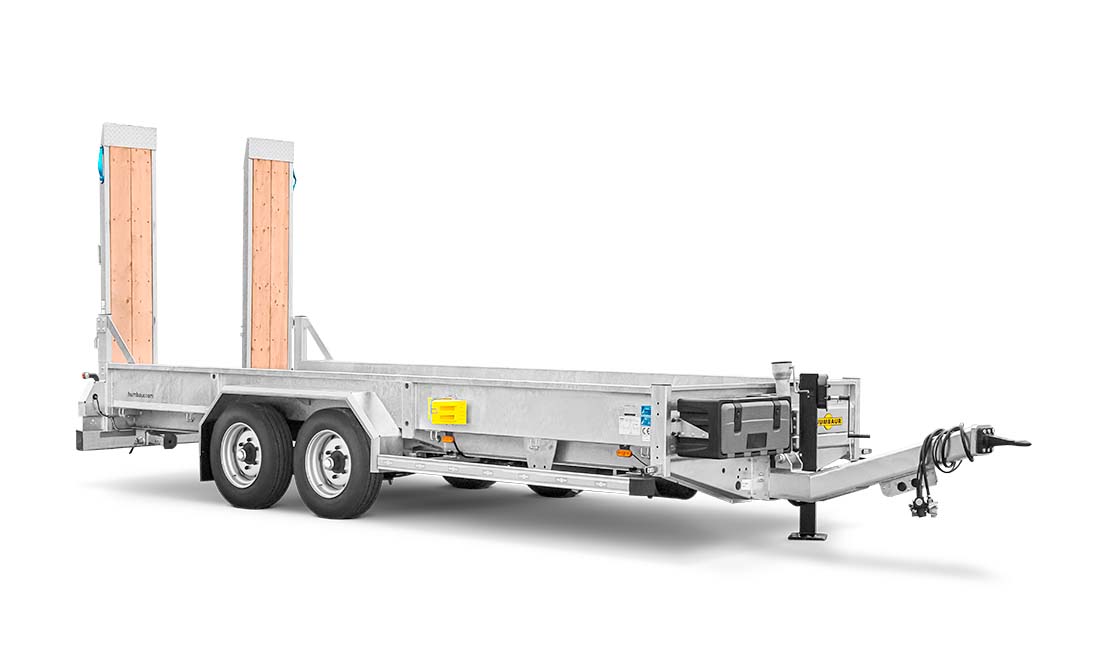

From 8.9 T The HS

Increased payload

and even more stability
i

Central tube with screw-in towing eye Ø 40 mm, galvanised and infinitely variable using a crank handle.

i

Sturdy, hot-dip galvanised welded structure for optimal stability and safety, fixed, load-bearing, galvanised front and side walls.

i

Axles with drum brake, maintenance-free parabolic suspension for optimal load compensation.

i

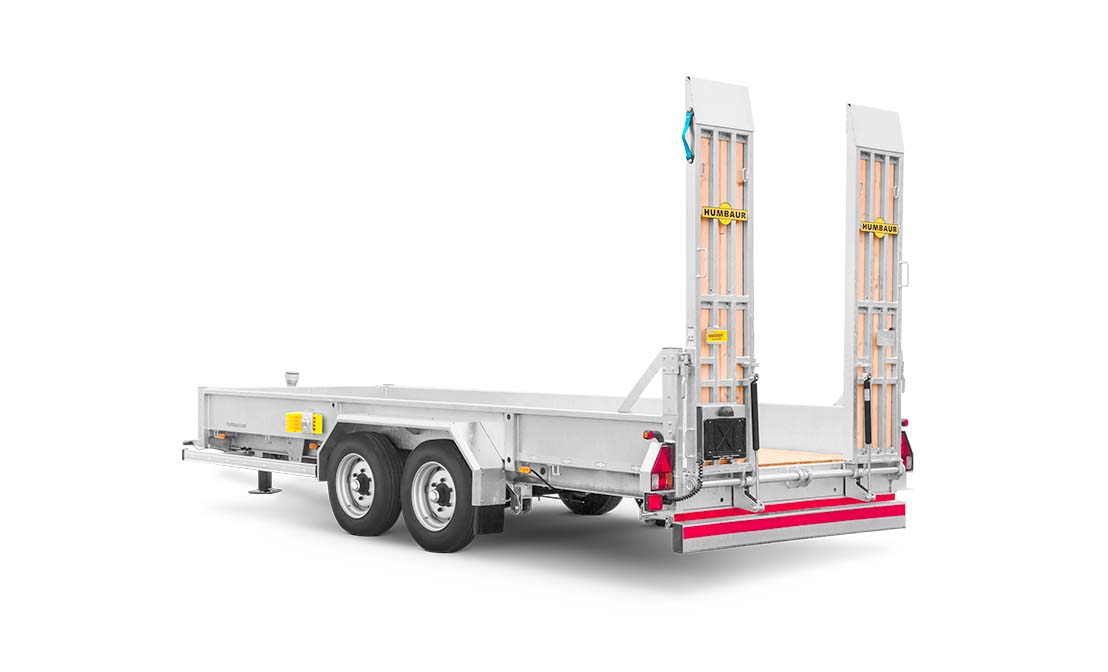

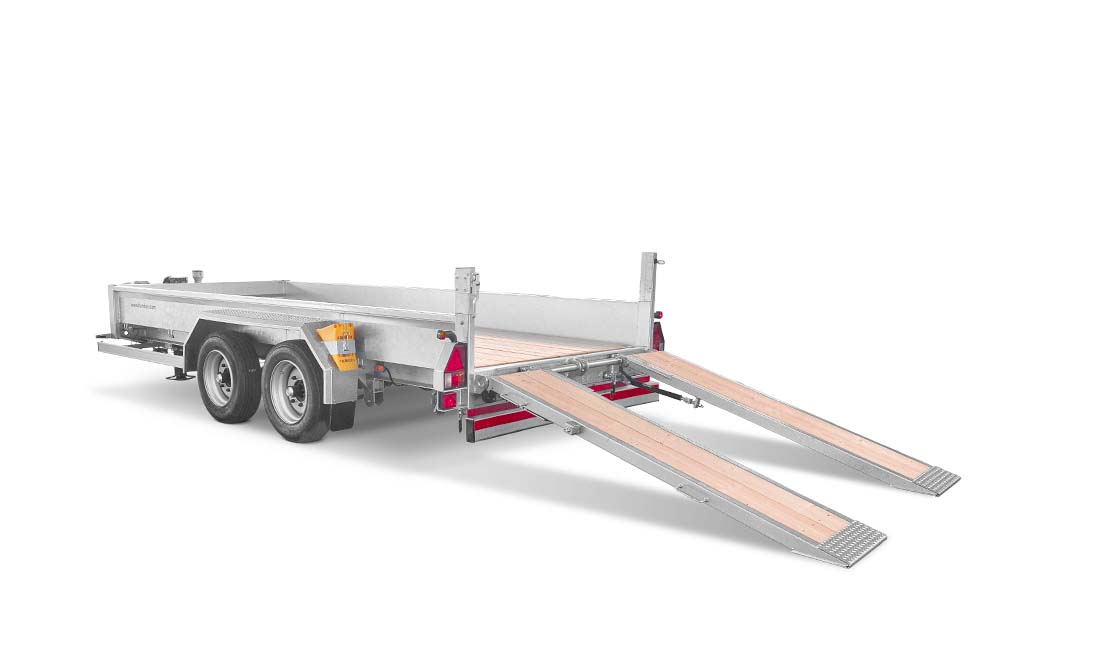

Sturdy hot-dip galvanised steel ramps with profile gratings movable to the side, gas strut ramp lifter.

i

Pneumatic brake with release valve, automatic ALB load-dependent braking, connection hoses with red/yellow coupling heads, 24 V ABV system with spindle parking brake.

i

15-way connecting plug

i

24 V lighting system with multiple-chamber tail lamps, optimally protected and LED side marking lamps.

i

2 pairs of 6 t lashing points recessed in the platform floor, 6 pairs of 2 t lashing points in the outer Frame.

i

Robust, hot-dip galvanised steel mudguard with anti-spray system, lateral impact protection, contour markings on the sides and rear.

i

2 wheel chocks with retainers

i
  • Reinforced 12 t geared support jack with load and fast speeds, on the left in the direction of travel.

The big brother of the HS tandem flatbed trailer above5 t allows for an even higher load capacity. Both trailers offer the same functionality. The standard lashing options integrated in the platform floor guarantee optimal loadsecuring.

Details of the HS tandem flatbed trailer from 8.9 t:

Galvanised central tube
Sturdy, hot-dip galvanised welded structure
Axles and suspension
Solid, hot galvanised steel ramps
Compressed-air brake
15-way connecting plug
24 V lighting system with multiple-chamber tail lamps
Tie-down points integrated into the platform floor and the outer frame
Rugged, hot galvanised, steel mudguard
2 wheel chocks with retainers
Reinforced 12 t geared support jack

Technical data

HS 895020 BS

Permissible gross weight in kg 8900 Body dimensions in mm 7140 x 2550 x 3100
Load capacity in kg 6500 Drive-up angle 16 °
Internal dimensions in mm 5000 x 2010 Tyre size in inches 215/75 R17,5
Load height in mm 690

HS 106020 BS

Permissible gross weight in kg 10500 Body dimensions in mm 8090 x 2550 x 3090
Load capacity in kg 7550 Drive-up angle 16 °
Internal dimensions in mm 6000 x 2010 Tyre size in inches 235/75 R17,5
Load height in mm 705

HS 105020 BS

Permissible gross weight in kg 10900 Body dimensions in mm 7090 x 2550 x 3090
Load capacity in kg 8100 Drive-up angle 16 °
Internal dimensions in mm 5000 x 2010 Tyre size in inches 235/75 R17,5
Load height in mm 705

Subject to technical modifications. All dimensions are approximate values and relate to the series vehicle without accessories. Additional equipment changes both the inherent weight and the load capacity!

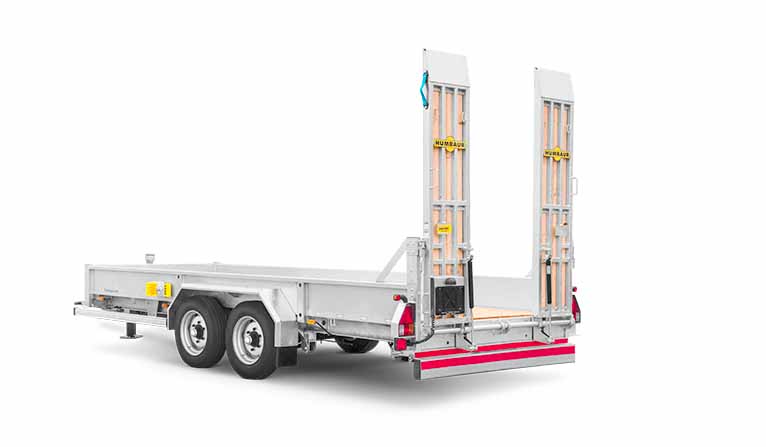

What can I transport with the Humbaur HS trailer?

Crawler excavator

[Translate to English:] Minibagger/Kompaktbagger

Mini-excavators and compact excavators up to a weight of 8.1 tonnes (HS 105020 BS).

Construction material

[Translate to English:] Symbolbild Baumaterialien (Ziegelsteine)

Construction material such as bricks, gravel, small, prefabricated concrete parts or pipes (max. 8.1 t).
