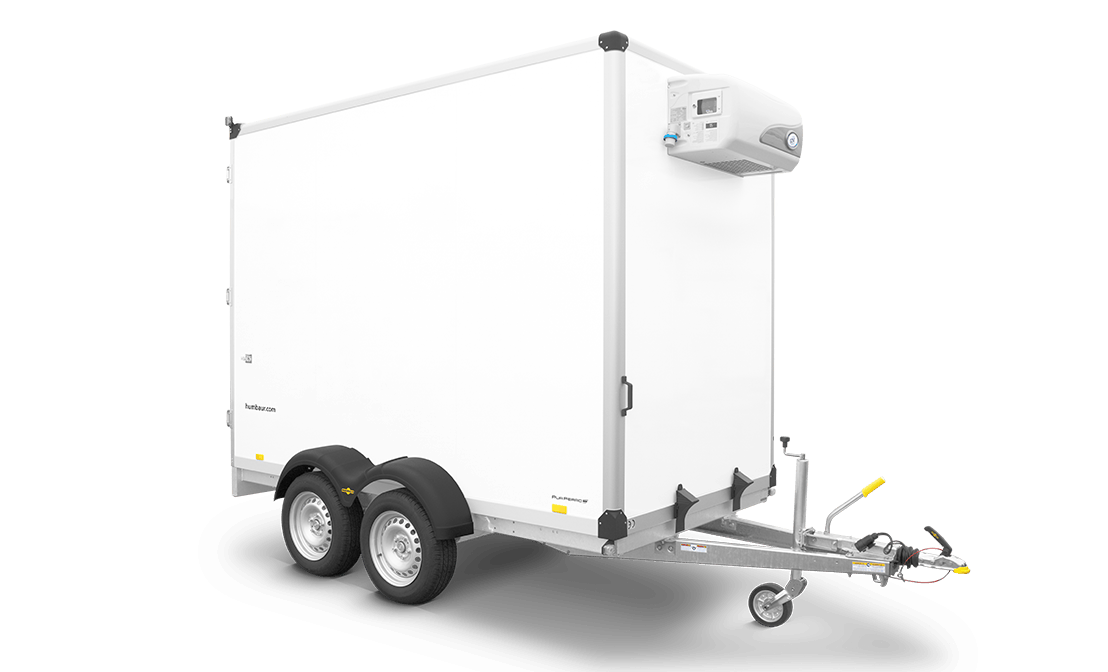

Freezer trailer TK

TK Freezer

The deep-freeze trailer TK ensures the right temperature of your frozen goods.
i

V drawbar, hot-dip galvanised

i

The optional freezer unit can regulate the cooling temperature within a range between +10 ° C and -18 ° C.

i

13-pin plug

i

Body made from 80 mm sandwich panels.

i

Jockey wheel

The deep-freeze tandem box trailer in detail:

V drawbar, hot-dip galvanised
Freezer unit (optional)
13-pin plug
Body made from 80 mm sandwich panels
Jockey wheel

Technical data

Tandem Axle-Freezer Trailers

Trailer Tandem Axle-Freezer Trailers in detail
Tandem Axle-Freezer Trailers silhouette sideview
Inner height 2.225 mm Total height 2.960 mm
Inner length 3.080 - 4.080 mm Total length 4.650 - 5.650 mm
Tandem Axle-Freezer Trailers silhouette backside
Inner width 1.630 mm Total width 2.275 mm

Tandem Axle-Freezer Trailers Standard equipment

  • Hot-dip galvanised v-shaped coupling
  • 13-pin plug and reversing light, interior lighting
  • Insulated 85 mm thick base plate
  • Construction using 80 mm thick sandwich panels
  • Locking double refrigerator doors with interior emergency opening mechanism
  • Stainless steel hinges
  • refrigeration unit Govi 2000 P
  • Front and side interior anti-chafing protection, c. 150 mm high, made from corrugated sheet aluminium
  • Jockey wheel
  • Stützrad

Tandem Axle-Freezer Trailers Models

Permissible gross weight in kg
2500
2500
2500
3000
Load capacity in kg
1422
1288
1185
1685
Body dimensions in mm (LxWxH)
4650 x 2275 x 2960
5150 x 2275 x 2960
5650 x 2275 x 2960
5650 x 2275 x 2960
Internal dimensions in mm (LxWxH)
3080 x 1630 x 2225
3580 x 1630 x 2225
4080 x 1630 x 2225
4080 x 1630 x 2225
braked
Load height in mm
610
610
610
610
Tyre size in inches
15
15
15
14

TK 25 32 18 - 24 PF80

Permissible gross weight in kg
2500
braked
Body dimensions in mm (LxWxH)
4650 x 2275 x 2960
Tyre size in inches
15
Internal dimensions in mm (LxWxH)
3080 x 1630 x 2225
Load capacity in kg
1422
Load height in mm
610



TK 25 37 18 - 24 PF80

Permissible gross weight in kg
2500
braked
Body dimensions in mm (LxWxH)
5150 x 2275 x 2960
Tyre size in inches
15
Internal dimensions in mm (LxWxH)
3580 x 1630 x 2225
Load capacity in kg
1288
Load height in mm
610



TK 25 42 18 - 24 PF80

Permissible gross weight in kg
2500
braked
Body dimensions in mm (LxWxH)
5650 x 2275 x 2960
Tyre size in inches
15
Internal dimensions in mm (LxWxH)
4080 x 1630 x 2225
Load capacity in kg
1185
Load height in mm
610



TK 30 42 18 - 24 PF80

Permissible gross weight in kg
3000
braked
Body dimensions in mm (LxWxH)
5650 x 2275 x 2960
Tyre size in inches
14
Internal dimensions in mm (LxWxH)
4080 x 1630 x 2225
Load capacity in kg
1685
Load height in mm
610



Images similar; some images show special equipment.
