The HVK

The HVK

Your handy helper when it comes to mobile sales success.
i

V drawbar, hot-dip galvanised

i

13-pin plug

i

Insulated floor plate 18 mm thick with PVC floor covering.

i

Body made from 45 mm sandwich panels

i

Central access door in front wall can be locked, aluminium treat plate step on drawbar.

i

Sales hatch with gas spring support on right side in driving direction, locked from inside.

i

4 scissor-type supports

i

Wheel housings integrated into body

i

2 manoeuvring handles

i

Jockey wheel

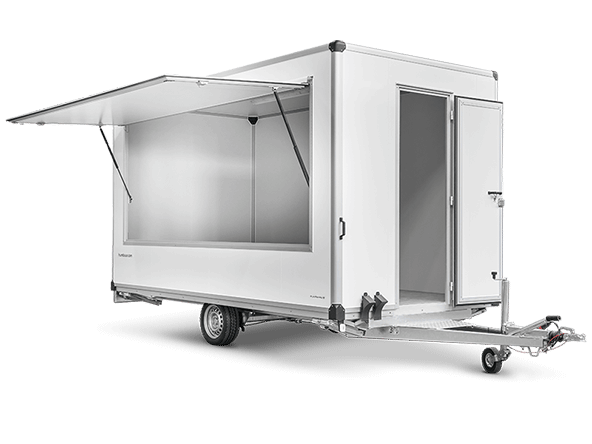

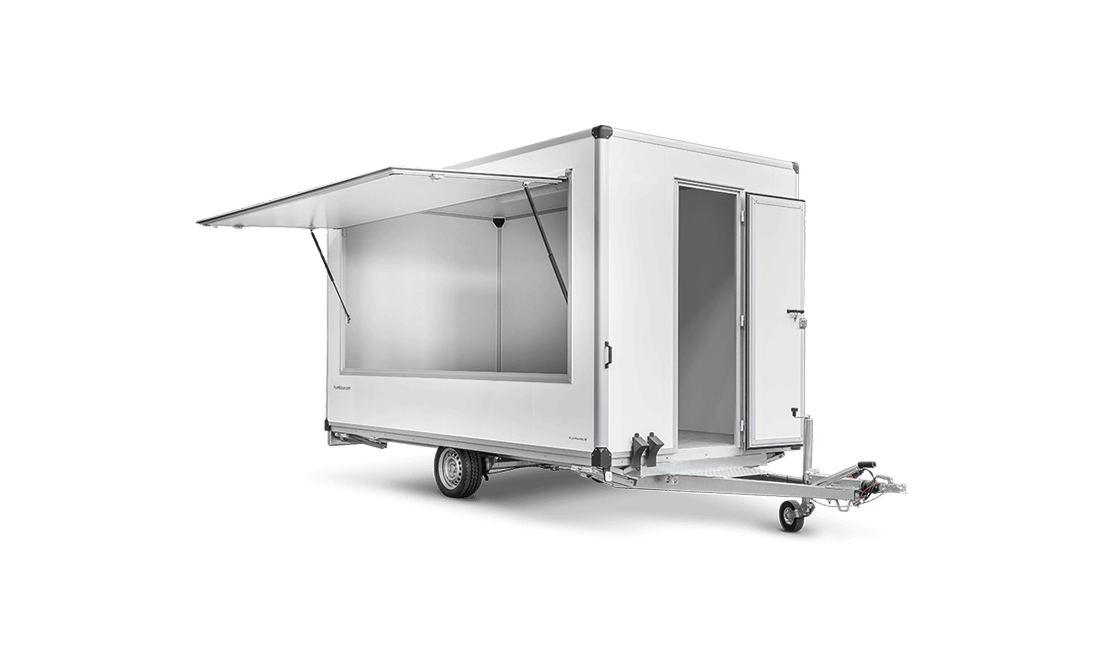

Our catering trailers make selling so much easier for you in many respects. Access to your catering trailer is via a door at the front. High-quality lighting has been provided in galvanised fittings. The body has a polyurethane core and is coated with galvanised, powder-coated steel plate on both sides. The well-designed flap is on the right side and has a hinged cover with rain protection. This means that your customers are always under cover. Gas springs help you open the flap. Do you have very particular requirements for your catering trailer? Find out more about our comprehensive range of accessories.

The sales box trailer HVK in detail:

V drawbar, hot-dip galvanised
13-pin plug
Insulated floor plate 18 mm thick with PVC floor covering
Body made from 45 mm sandwich panels
Central access door in front wall, can be locked
Sales hatch with gas spring support
4 scissor-type supports
Wheel housings integrated into body
2 manoeuvring handles
Jockey wheel

Technical data

Single axle sandwich PurFerro

Trailer Single axle sandwich PurFerro in detail
Single axle sandwich PurFerro silhouette sideview
Inner height 2.280 mm Total height 2.860 mm
Inner length 3.190 - 4.190 mm Total length 4.615 - 5.920 mm
Single axle sandwich PurFerro silhouette backside
Inner width 2.130 mm Total width 2.200 mm

Single axle sandwich PurFerro Standard equipment

  • Hot-dip galvanised v-shaped coupling
  • 13-pin plug and reversing light
  • 18 mm thick base plate covered with PVC flooring
  • Construction using 30 mm thick PurFerro sandwich panels
  • Lockable entry door mounted centrally in the front bulkhead, foothold made from corrugated sheet aluminium mounted on the coupling
  • Vending hatch with hydraulic spring supports, on the right hand side of vehicle, locking from within
  • 4 hatch supports
  • Jockey wheel
  • Parapet height 565mm up from the floor
  • Integrated wheelhouses
  • 2 manoeuvring handles
  • 2 Rangiergriffe

Single axle sandwich PurFerro Models

Permissible gross weight in kg
1300
1500
1800
1300
1500
1800
1800
Load capacity in kg
407
607
895
321
521
825
724
Body dimensions in mm (LxWxH)
4615 x 2200 x 2860
4615 x 2200 x 2860
4615 x 2200 x 2860
5115 x 2200 x 2860
5115 x 2200 x 2860
5115 x 2200 x 2860
5920 x 2200 x 2860
Internal dimensions in mm (LxWxH)
3190 x 2130 x 2280
3190 x 2130 x 2280
3190 x 2130 x 2280
3690 x 2130 x 2280
3690 x 2130 x 2280
3690 x 2130 x 2280
4190 x 2130 x 2280
braked
Load height in mm
550
550
550
550
550
550
550
Tyre size in inches
13
13
13
13
13
13
13

HVK 13 32 22 - 24 PF30

Permissible gross weight in kg
1300
braked
Body dimensions in mm (LxWxH)
4615 x 2200 x 2860
Tyre size in inches
13
Internal dimensions in mm (LxWxH)
3190 x 2130 x 2280
Load capacity in kg
407
Load height in mm
550



HVK 15 32 22 - 24 PF30

Permissible gross weight in kg
1500
braked
Body dimensions in mm (LxWxH)
4615 x 2200 x 2860
Tyre size in inches
13
Internal dimensions in mm (LxWxH)
3190 x 2130 x 2280
Load capacity in kg
607
Load height in mm
550



HVK 18 32 22 - 24 PF30

Permissible gross weight in kg
1800
braked
Body dimensions in mm (LxWxH)
4615 x 2200 x 2860
Tyre size in inches
13
Internal dimensions in mm (LxWxH)
3190 x 2130 x 2280
Load capacity in kg
895
Load height in mm
550



HVK 13 37 22 - 24 PF30

Permissible gross weight in kg
1300
braked
Body dimensions in mm (LxWxH)
5115 x 2200 x 2860
Tyre size in inches
13
Internal dimensions in mm (LxWxH)
3690 x 2130 x 2280
Load capacity in kg
321
Load height in mm
550



HVK 15 37 22 - 24 PF30

Permissible gross weight in kg
1500
braked
Body dimensions in mm (LxWxH)
5115 x 2200 x 2860
Tyre size in inches
13
Internal dimensions in mm (LxWxH)
3690 x 2130 x 2280
Load capacity in kg
521
Load height in mm
550



HVK 18 37 22 - 24 PF30

Permissible gross weight in kg
1800
braked
Body dimensions in mm (LxWxH)
5115 x 2200 x 2860
Tyre size in inches
13
Internal dimensions in mm (LxWxH)
3690 x 2130 x 2280
Load capacity in kg
825
Load height in mm
550



HVK 18 42 22 - 24 PF30

Permissible gross weight in kg
1800
braked
Body dimensions in mm (LxWxH)
5920 x 2200 x 2860
Tyre size in inches
13
Internal dimensions in mm (LxWxH)
4190 x 2130 x 2280
Load capacity in kg
724
Load height in mm
550



Images similar; some images show special equipment.
