From 10 t The HTK

HTK 10 t

A three-way tipper that deserves your trust
i
  • Compressed air coupler heads (red/yellow)
  • Central tube with screw-in towing eye Ø 40 mm
  • galvanised and infinitely variable using a crank handle
i

Solid, welded and hot-dip galvanised frame for optimal stability and safety; platform floor made of 4 mm finegrained steel, swap-proof rocker-bearing bolts.

i

Laser-welded, high-quality steel sideboards, 500 mm height, can be folded down at the sides and rear, removable and hinged with central lock, bulkhead removable.

i

Hot-dip galvanised platform frame with longitudinal, transverse and diagonal struts for high stability and point-load resistance.

i

Motor-powered, hydraulic three-way tipping system, fivestep, hard-chromium-plated cylinder with stroke limiter.

i

Axles with drum brake, maintenance-free parabolic suspension with load compensation.

i

15-way connecting plug for lighting.

i

24 V lighting system with multiple-chamber tail lamps, optimally protected and LED side marking lamps.

i

Recessed in the floor of the bridge: 4 pairs / 4.5 m; 5 pairs / 5.0 m; 6 pairs / 5.5 m

i

Mudguard equipped with anti-spray system, rigid lateral impact protection.

i

2 wheel chocks with retainers

i
  • Reinforced 12 t geared support jack with load and fast speeds, on the left in the direction of travel.

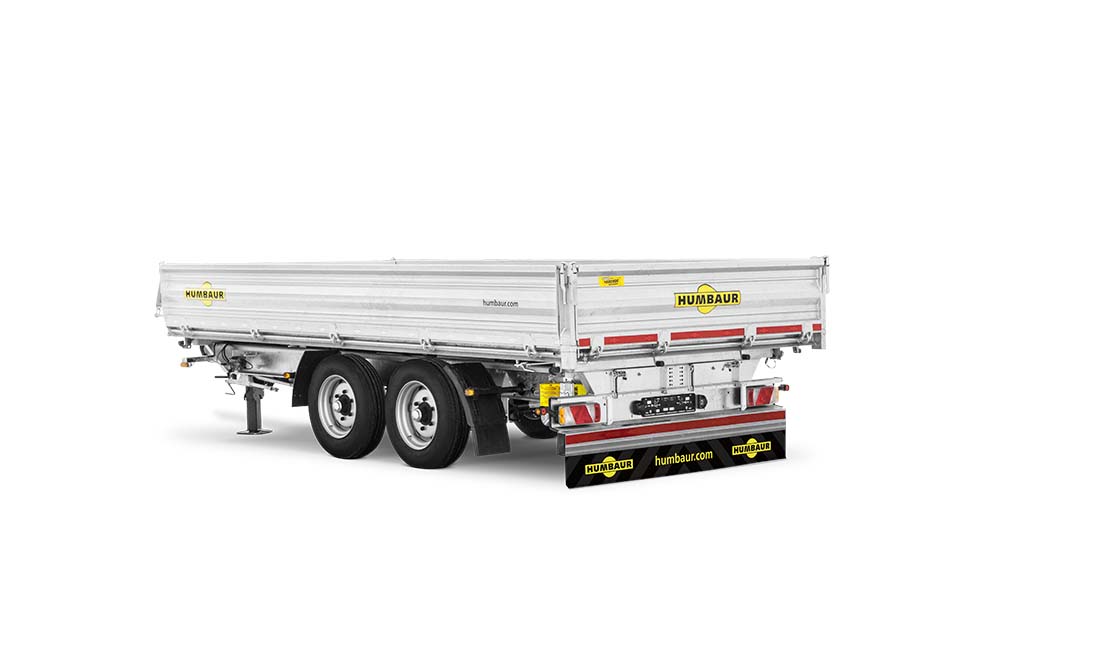

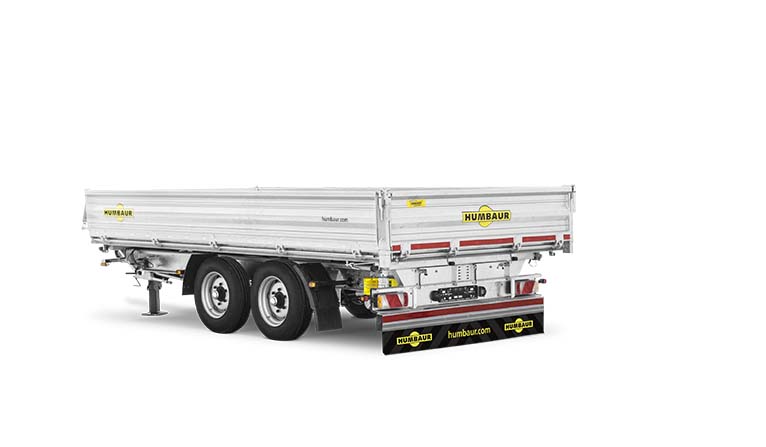

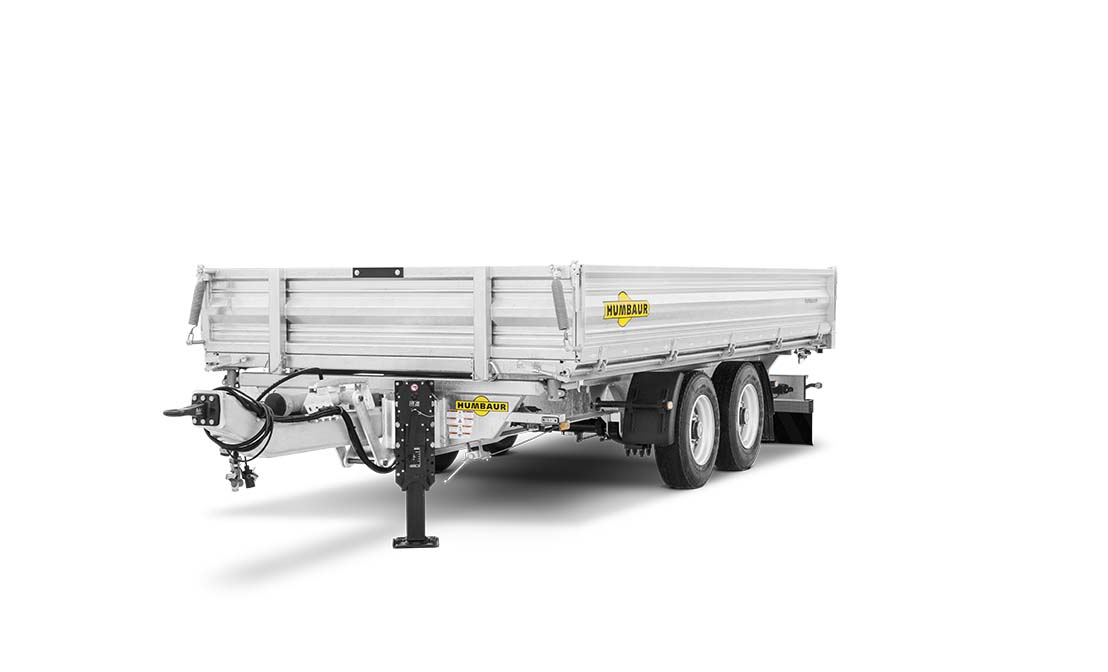

The HTK with a gross weight above 10 t is a variable all-rounder. It is particularly impressive with its five-stage hard-chromed cylinder and hydraulic motorised threeway tipper. It has a sturdy, welded, hot-dip galvanised frame for optimum stability and safety. The platform floor is made from 4 mm fine-grained steel. The 500 mm high hinged drop sides with central lock can be folded down at the sides and rear and removed.

Tandem three-way tipper HTK from 10 t:

Galvanised central tube
Solid, welded, and hot-dip galvanised frame
Laser-welded, high-quality steel sideboards
Platform frame

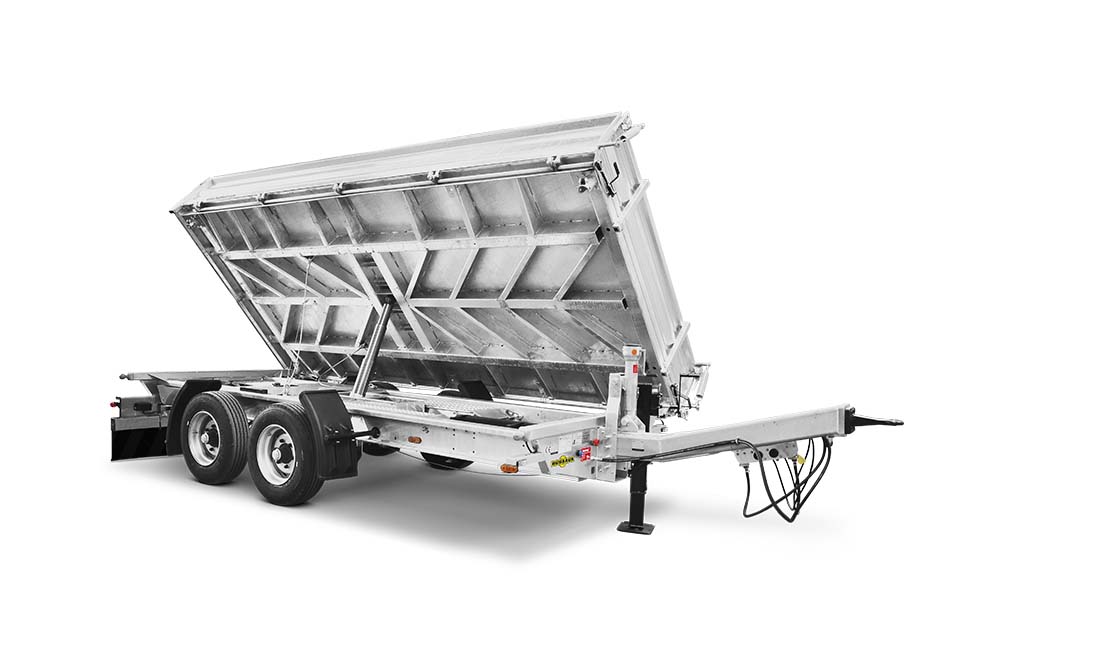

Motor-powered, hydraulic three-way tipping system
Axles and suspension
15-way connecting plug
24 V lighting system with multiple-chamber tail lamps
Tie-down points
Mudguard
2 wheel chocks with retainers
Reinforced 12 t geared support jack

Technical data

HTK 104522

Permissible gross weight in kg 11900 Body dimensions in mm 6500 x 2350 x 1500
Load capacity in kg 8900 Tilt angle (to side/rear) 45 °/45 °
Internal dimensions in mm 4530 x 2220 Tyre size in inches 235/75 R17,5
Load height in mm 990

HTK 105024

Permissible gross weight in kg 11900 Body dimensions in mm 7000 x 2550 x 1500
Load capacity in kg 8690 Tilt angle (to side/rear) 45 °/48 °
Internal dimensions in mm 5030 x 2420 Tyre size in inches 235/75 R17,5
Load height in mm 990

HTK 105524

Permissible gross weight in kg 11900 Body dimensions in mm 7500 x 2550 x 1500
Load capacity in kg 8530 Tilt angle (to side/rear) 45 °/48 °
Internal dimensions in mm 5530 x 2420 Tyre size in inches 235/75 R17,5
Load height in mm 990

Subject to technical modifications. All dimensions are approximate values and relate to the series vehicle without accessories. Additional equipment changes both the inherent weight and the load capacity! With a gross weight of 5 tonnes, the HTK possesses features similar to those found in other models with a gross weight exceeding 10 tonnes.

What can I transport with the Humbaur HTK trailer?

Construction materials

Construction materials and pallet goods up to 10.2 t.

Crawler excavator

Mini-excavators and compact excavators up to a weight of approx. 3.2 to 7.6 tonnes, depending on the model.
