Single axle trailer HA Multi

HA Multi

Humbaur single axle trailer

HA Multi

The versatile transport aid
i

Galavnised v-shaped drawbar

i

13 pin plug and reversing light from 751kg (gross weight)

i

Floor plate 15 mm thick

i

Drop sides made of anodised, double-walled aluminium profiles.

i

6 lashing rings integrated in the side walls, traction force 400kg per ring, Dekra tested

i

Humbaur multifunction lighting integrated into underride protection.

i

Insertion option for drive-on ramps

i

Corner stanchions with insert option

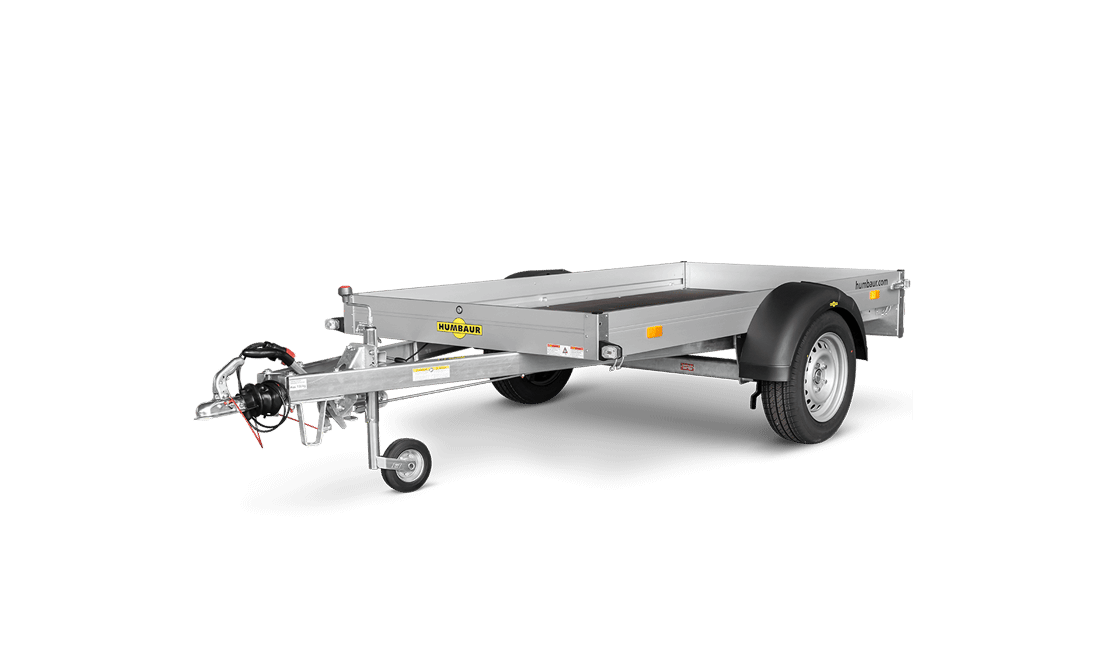

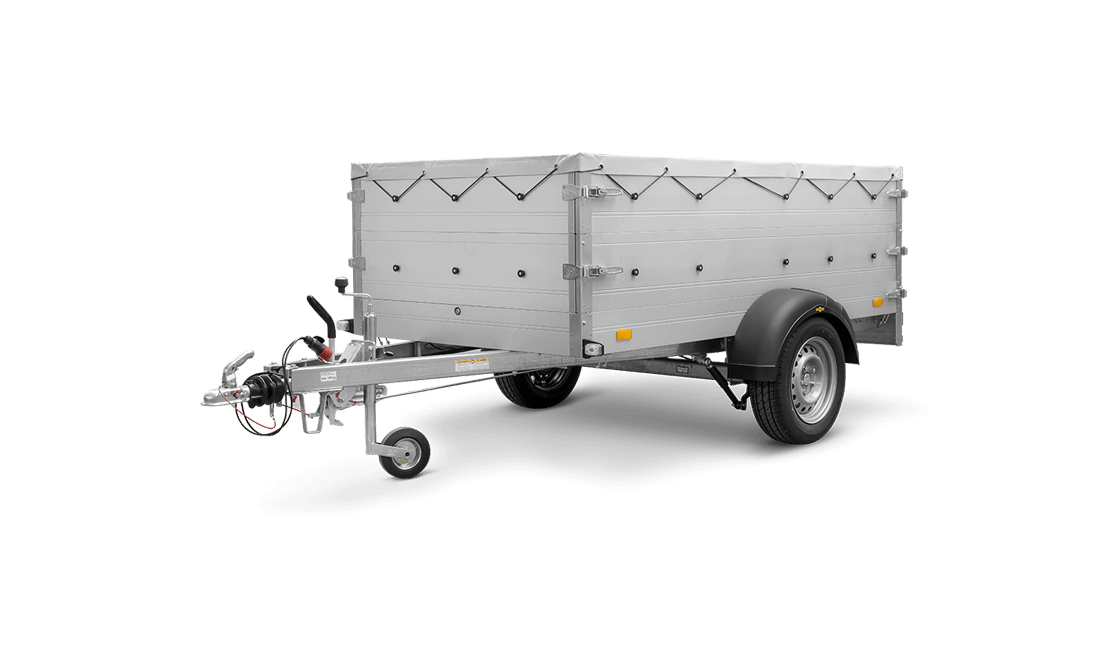

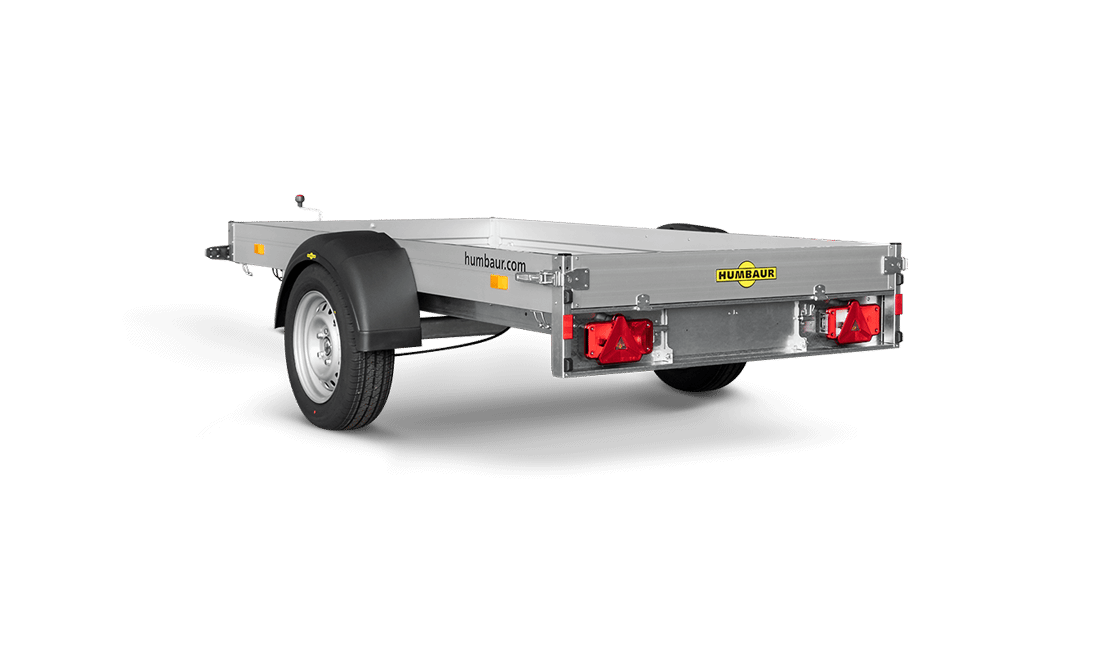

HA Multi PDO1 HA Multi PDO2 HA Multi PDO3

The HA Multitransporter is a car-trailer suitable for a wide range of applications. The box trailer has a fixed front wall and side walls made of anodised, double-walled aluminium profiles with a height of 150 mm. The tailgate is equipped with toggle-type fasteners. The loading area of the flatbed trailer measures 2510 x 1310 mm. Three pairs of tie-down hoops are recessed into the side walls for securing the load. The tensile force is 400 kg per hoop. The HA Multitransporter can be equipped in a variety of ways thanks to features such as its corner stanchions with insert options, which can be used to fit additional side-wall elements 30 cm in size. A flat cover and an aluminium cover are available as accessories to provide protection from above. A motorcycle rail can also be retrofitted as an accessory and the option to fit loading planks is planned as a new standard feature of the series. The 15-mm thick, weather-resistant floor plate is sufficiently robust for any application. The HA Multitransporter is available in two variants: without a brake, with a permissible maximum weight of 750 kg, and with a brake and a permissible maximum weight of 1300 kg. The version with a brake includes a jockey wheel as standard.

Galavnised v-shaped drawbar
13 pin plug and reversing light
Floor plate 15 mm thick
Drop sides made of aluminium profiles
6 lashing rings integrated in the side walls
Multifunction lighting integrated into underride protection

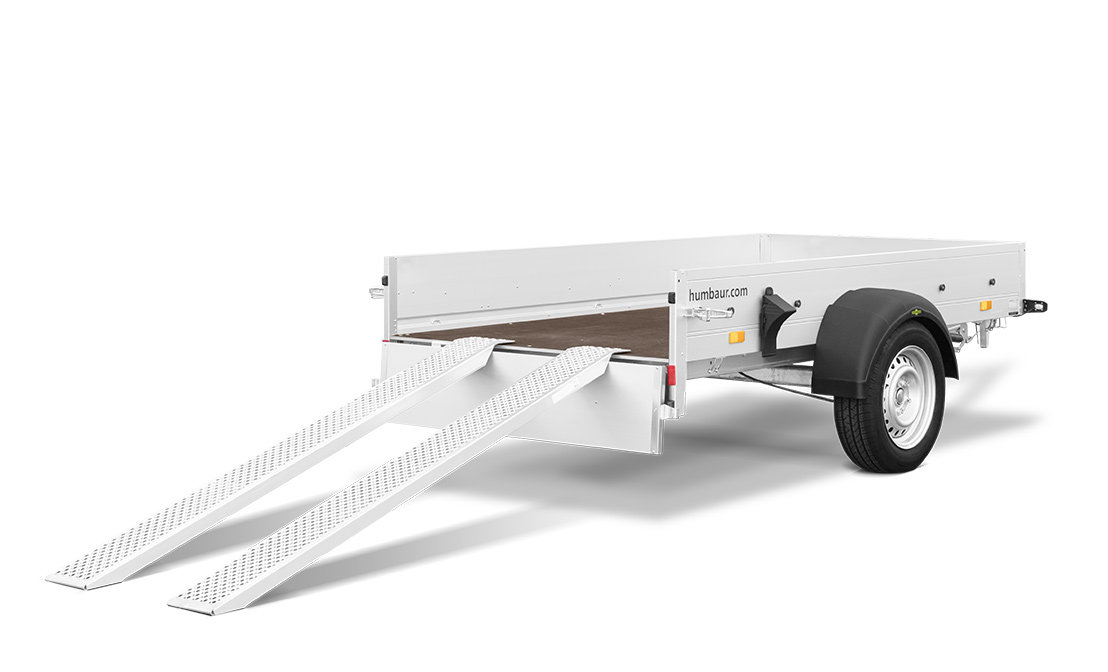

Insertion option for drive-on ramps
Corner stanchions with insert option

360° view

Technical data

HA Multi

Trailer HA Multi in detail
HA Multi silhouette sideview
Inner height 150 mmTotal height 650 mm
Inner length 2.510 mmTotal length 3.585 mm
HA Multi silhouette backside
Inner width 1.310 mmTotal width 1.760 mm

HA Multi Standard equipment

  • Galavnised v-shaped drawbar
  • 13 pin plug and reversing light from 751kg (gross weight)
  • 15 mm thick base plate
  • Side walls made of anodised double-walled aluminum profiles
  • 6 lashing rings integrated in the side walls, traction force 400kg per ring, Dekra tested
  • Humbaur lighting integrated in the underrun protection
  • Insertion of the loading planks possible
  • Possibiltiy to insert corner stanchions

HA Multi Models

Permissible gross weight in kg
750
1300
Load capacity in kg
602
1085
Body dimensions in mm (LxWxH)
3585 x 1760 x 650
3765 x 1800 x 755
Internal dimensions in mm (LxWxH)
2510 x 1310 x 150
2510 x 1310 x 150
braked
-
Load height in mm
500
530
Tyre size in inches
13
14

HA 752513 Multi

Permissible gross weight in kg
750
braked
Body dimensions in mm (LxWxH)
3585 x 1760 x 650
Tyre size in inches
13
Internal dimensions in mm (LxWxH)
2510 x 1310 x 150
Load capacity in kg
602
Load height in mm
500



HA 132513 Multi RSD

Permissible gross weight in kg
1300
braked
Body dimensions in mm (LxWxH)
3765 x 1800 x 755
Tyre size in inches
14
Internal dimensions in mm (LxWxH)
2510 x 1310 x 150
Load capacity in kg
1085
Load height in mm
530



Product sheet for download

Images similar; some images show special equipment.
