From 19 t The HTK

HTK 19 t

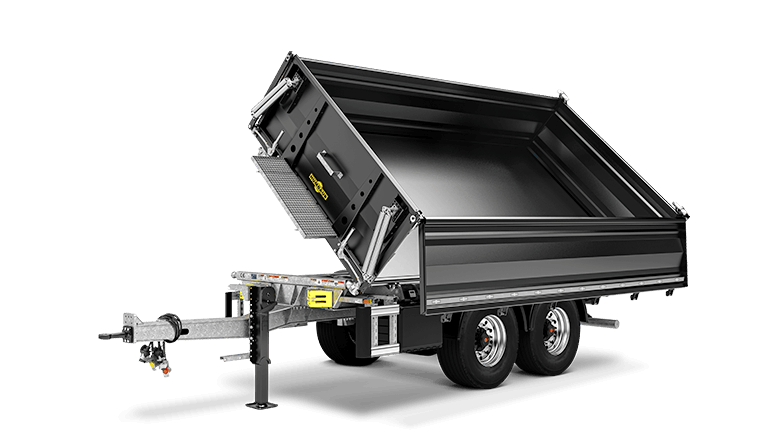

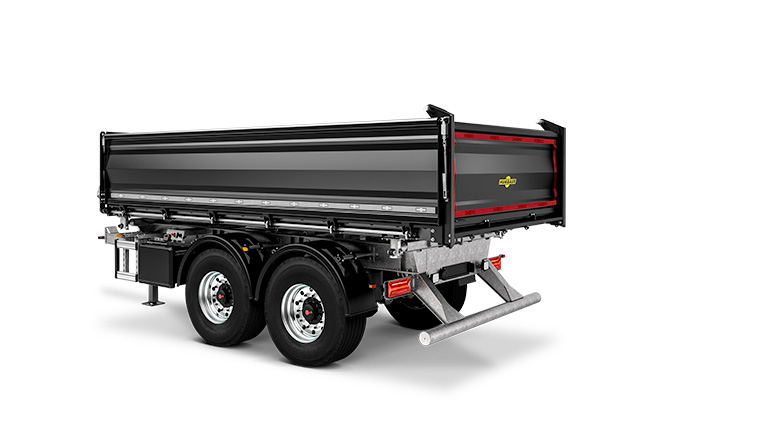

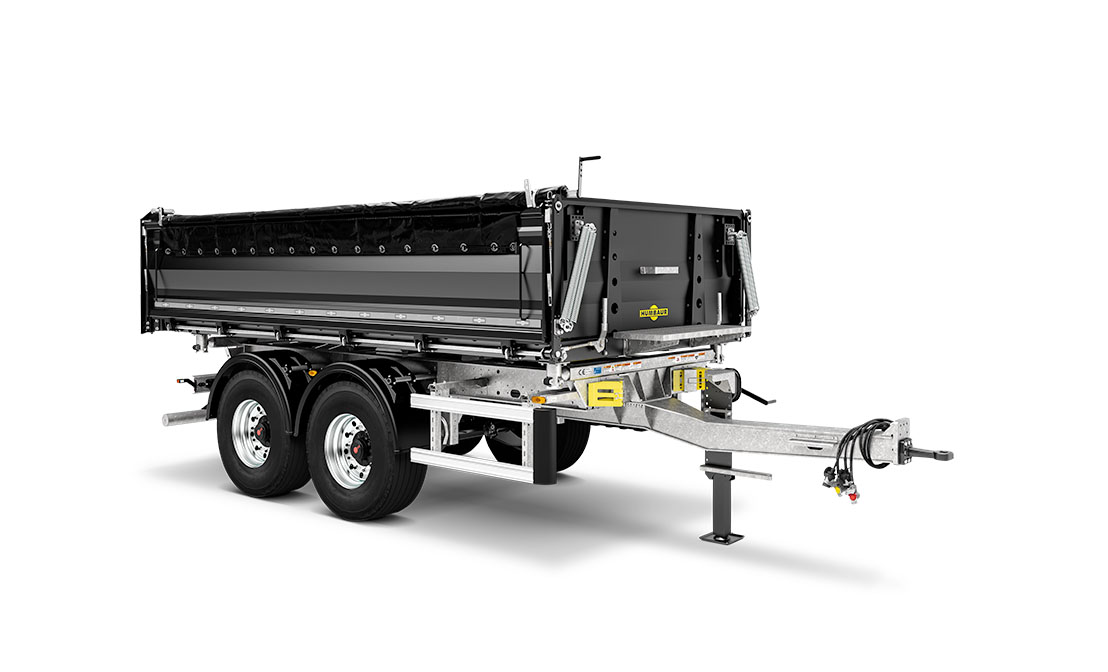

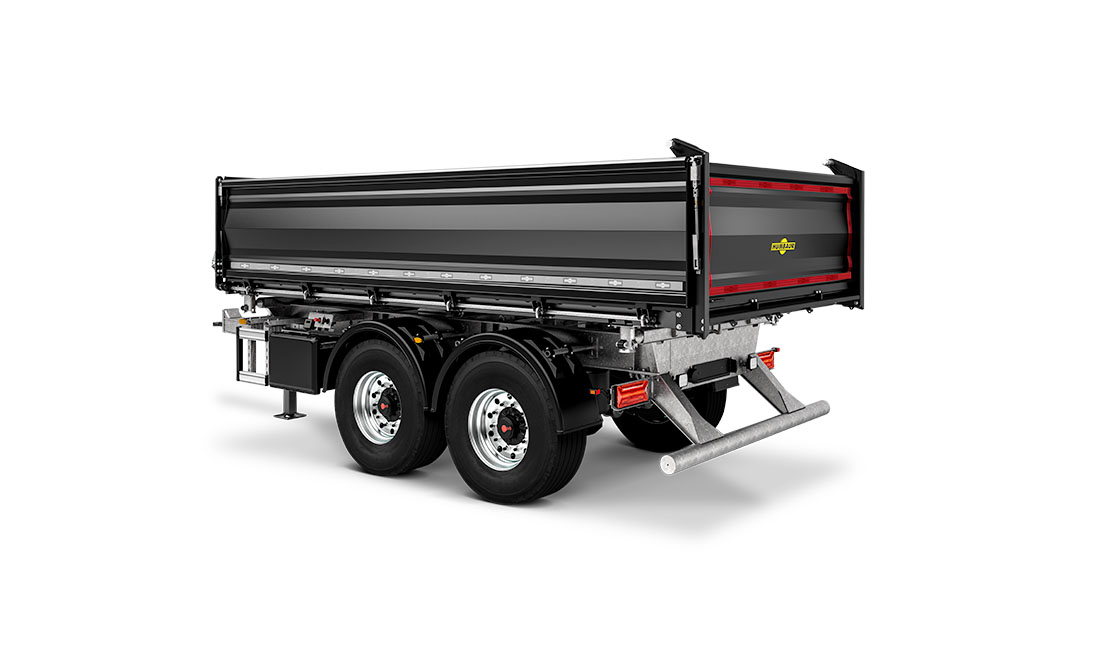

Load-capacity-optimised, rugged three-way tipper
i

Central tube

  • Stilted, length adjustment via boreholes.
  • With screw-in towing eye Ø 50 mm.
i
  • Hardox®HB 450 tailgates 800 x 2.5 mm, hinged with central locking.
  • Fixed front wall 3 mm.
  • Hardox®HB 450 800 x 2.5 mm hinged rear wall fitted between two sturdy stanchions with automatic tailgate locking.
  • Complete cataphoretic and powder coated tipping bridge, single-colour in RAL.
i

Platform frame

  • Platform frame with longitudinal and cross struts for maximum stability and point-load resistance.
  • Platform floor made from 4 mm highly wear-resistant steel, HB 450.
  • 4 Rocking ball bearings with 2 swap-proof rocker-bearing bolts

Frame

  • Sturdy, welded and hot-dip galvanised frame for optimum stability and safety.
  • Hot-dip galvanised in immersion bath.

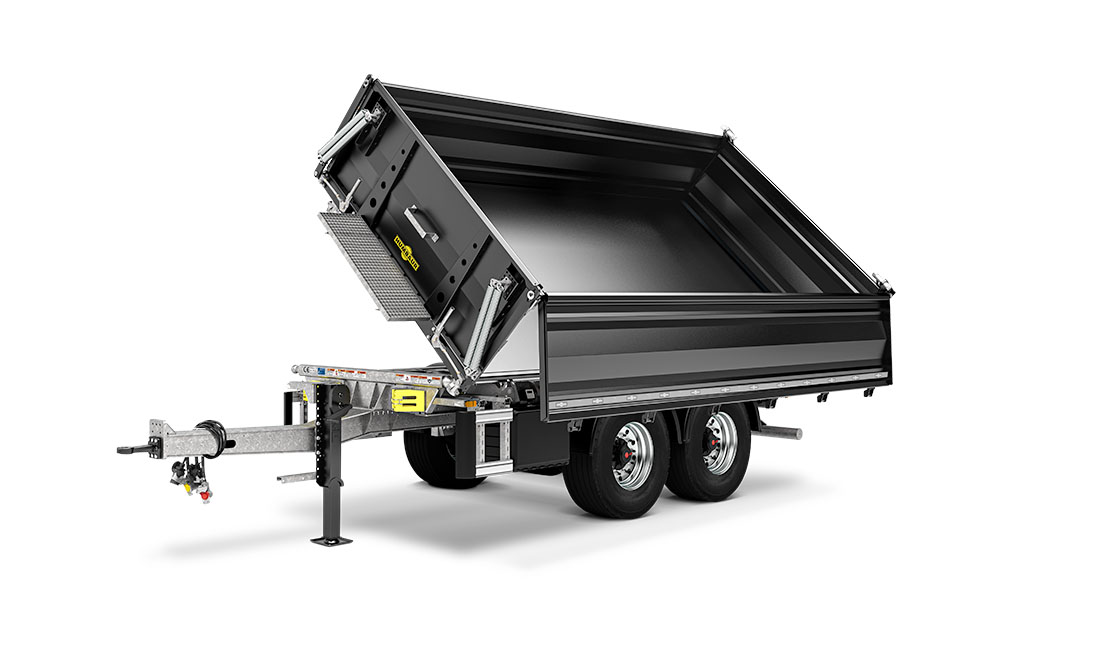

  • Motor-powered, hydraulic three-way tipping system
i
  • Hydraulic three-way tipping system with control via the towing vehicle (max 200 bar)
  • Three-tiered telescopic cylinder
  • Hydraulic SVK BG3 plug-in coupling as single circuit connection
i
  • Reinforced SAF CD axles with drum brake.
  • Tilting stabilisation through electronic air suspension with shock absorbers.
i
  • Pneumatic brake with release valve.
  • Compressed air coupler heads (red/yellow).
  • Anti-lock braking system.
  • EBS brake system with spring-loaded parking brake and 24-volt connection plug. The towing vehicle must be equipped with an ABS socket.
i
  • 15-pole connection plug.
i
  • 24 V lighting system with multiple-chamber tail lamps and LED side marking lamps.
i

Mudguard

  • 2 semicircle mudguards.

Equipment

  • 2 wheel chocks with holder.
  • Contour marking white on the side, red at the back.
i
  • Reinforced 12 t geared support jack with load and fast speeds, on the left in the direction of travel.

With a permissible gross weight of 19 tonnes, the HTK 19 is not only ideal for bulk materials such a earth, sand, gravel and concrete, but also construction materials such as bricks and concrete blocks. The design of the tandem three-way tipper is based on the width of a pallet and therefore guarantees the safe transportation of palletised goods. With optimised drive and tip qualities and a relatively low tare weight, the tipper offers a reliable helping hand for heavy-duty work.

Details of the HTK tandem three-way tipper from 19 t:

Central tube with screw-in towing eye Ø 50 mm
Hardox® tailgates
Platform frame
Motor-powered, hydraulic three-way tipping system
Axles and suspension
Pneumatic brake
15-pole connection plug
24 V lighting system
Mudguard and equipment
Reinforced 12 t geared support jack

Technical data

HTK 195025-P

Permissible gross weight in kg 19000 Body dimensions in mm 7103 x 2550 x 2440
Load capacity in kg 14500 Tilt angle (to side/rear) 50 °/50 °
Internal dimensions in mm 5010 x 2420 x 1000 Tyre size in inches 385/65 R22,5
Load height in mm 1440 Axle load in kg 18000

Subject to technical modifications. All dimensions are approximate values and relate to the series vehicle without accessories. Additional equipment changes both the inherent weight and the load capacity!

What can I transport with the Humbaur HTK 19 three-way tipper?

Construction materials

[Translate to English:] Baumaterialien-Symbolbild Ziegelsteine

Construction materials such as bricks, concrete blocks, gravel and building rubble.

Fine-grained construction material

[Translate to English:] Symbolfoto feine Baumaterialien

The HTK 19 three-way tipper can be used to transport approx. 14 tonnes of sand, depending on the model.

Coarse construction materials

[Translate to English:] Symbolfoto grobe Baumaterialien Kies

Its rugged construction is perfectly suited for coarse construction materials such as gravel or concrete rubble.
